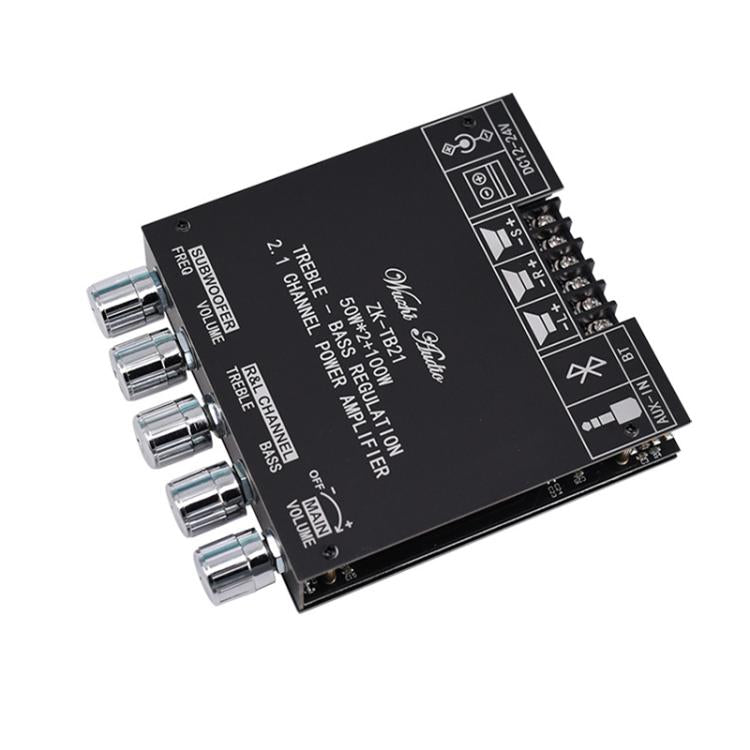

ZK-TB21 TPA3116D2 High & Low Pitch Adjustment 2.1 Channel Bluetooth Full Digital Power Amplifier Module

Name: ZK-TB21 TPA3116D2 High & Low Pitch Adjustment 2.1 Channel Bluetooth Full Digital Power Amplifier Module
Brand: PMC Jewellery
SKU: TBD06037826
Price: 739.00 ZAR
Availability: InStock

R 739.00

Sale Sold out

FREE DELIVERY on all orders.

🔥 Buy 2 items, get 25% off 3rd item 🔥 Today only!

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

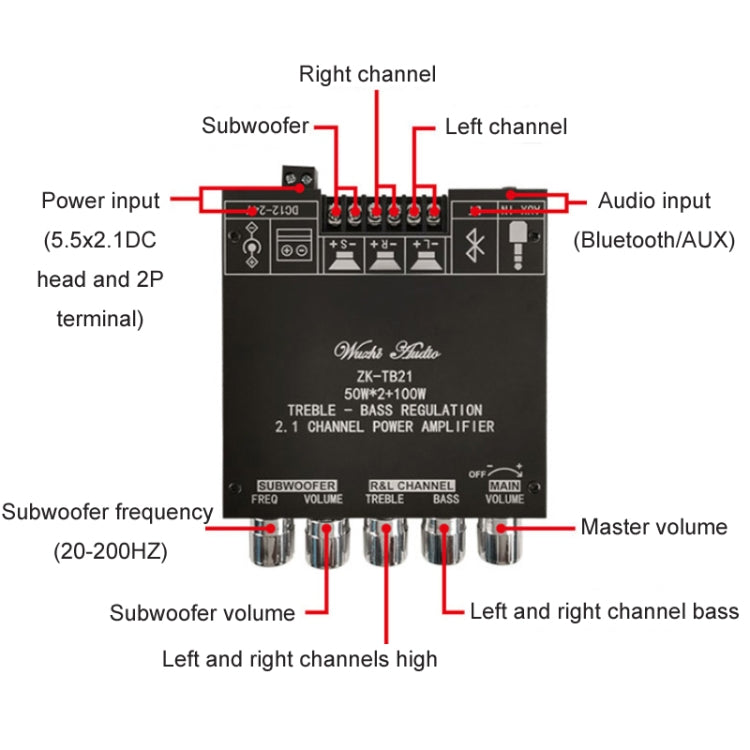

1. Power supply current: 5A
2. Power supply voltage: 12-24V
3. Bluetooth version: 5.0 (no occlusion, 10 meters)
4. Input sensitivity: 500mV
5. Input method: AUX+Bluetooth
6. Number of channels: 2.1
7. Channel power amplifier chip: TPA3116D2 (with AM interference suppression function)
8. Adaptive power supply: DC12-24V/5A or more (the higher the voltage, the greater the output power)
9. Adapted speaker: 20~100W.4~8 ohms
10. Output power: left and right channels 50W/subwoofer 100W
11. Protection mechanism: overvoltage, undervoltage, overheating, DC detection, short circuit protection
12. Product size: 120mmx100mmx20mm
13. Product weight: about 195 grams
14. Tips: Only when the audio input is sufficient and the power supply voltage/current is sufficient, there will be sufficient output power! ! ! The higher the power supply voltage, the greater the output power, and the smaller the speaker impedance, the greater the output power! ! ! Please ensure that the power of the adapted power supply is greater than the actual working power of the power amplifier! ! !
15. A screwdriver is provided, and the shell needs to be assembled by yourself
