With Housing 5A Constant Voltage Constant Current Buck Module

Name: With Housing 5A Constant Voltage Constant Current Buck Module
Brand: PMC Jewellery
SKU: TBD06021077
Price: 319.00 ZAR
Availability: InStock

R 319.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

Extra Surprise Discount: Add to Cart to view

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

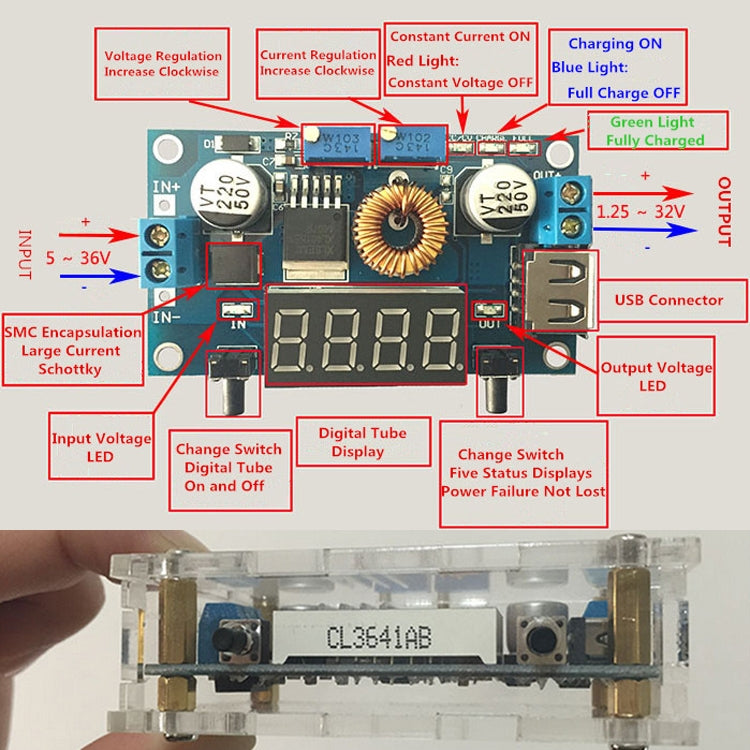

1. Input voltage: 5-36V (the input voltage above 6.5V is required for the on-board voltmeter to be effective)
2. Output voltage: 1.25-32V continuously adjustable (for use as a step-down module, the input must be greater than the output by more than 2V)
3. Output current: adjustable, up to 5A (recommended to be used within 4.5A, constant current needs to be output power above 2V to be adjustable, current adjustment will only work in constant current state)
4. Output power: up to 75W (recommended to be used within 50W, please reduce the power when using a large pressure difference)
5. Working frequency: 180KHZ
6. Short circuit protection: yes
7. Over-temperature protection: yes (automatically turn off the output after over-temperature)
8. Wiring method: wiring terminal or welding terminal, V-IN is input, V-OUT is output
9. Size: about 6.82x3.88x1.5cm
10. Weight: about 73g

Features:

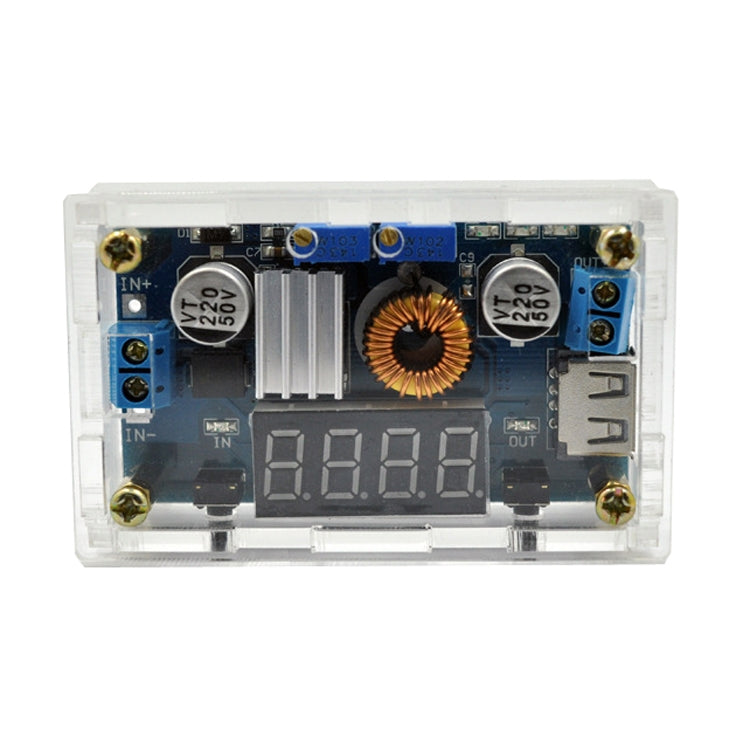

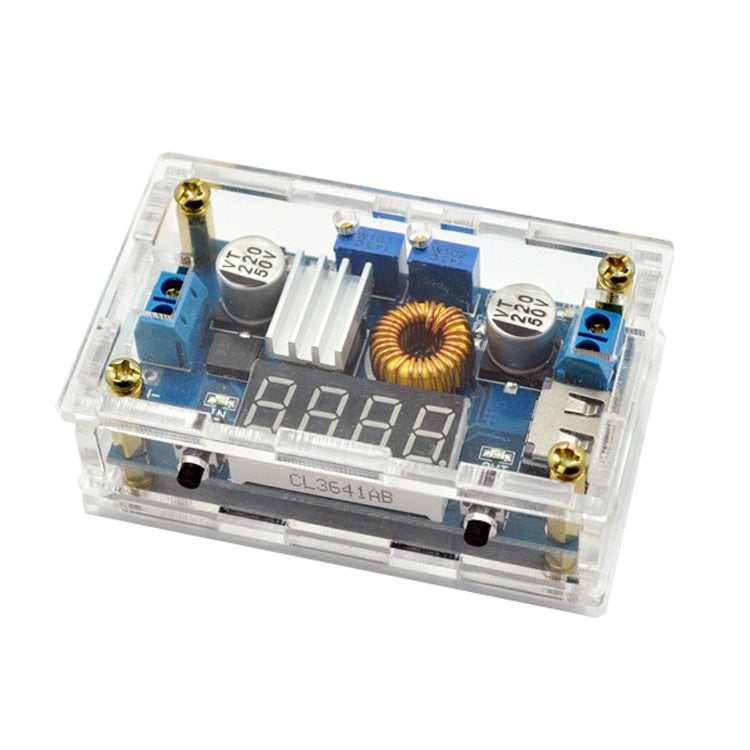

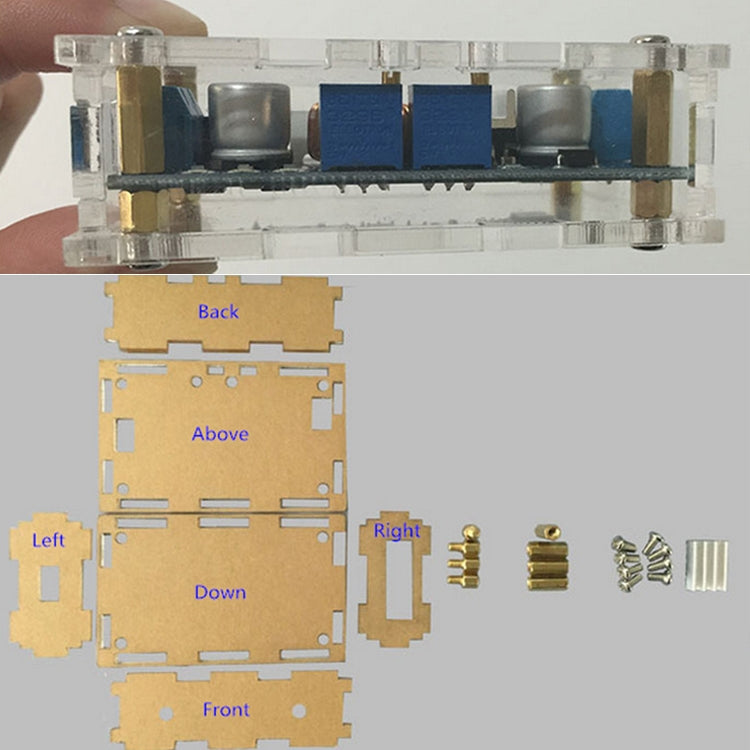

1. With crystal case, safe and practical, convenient and exquisite

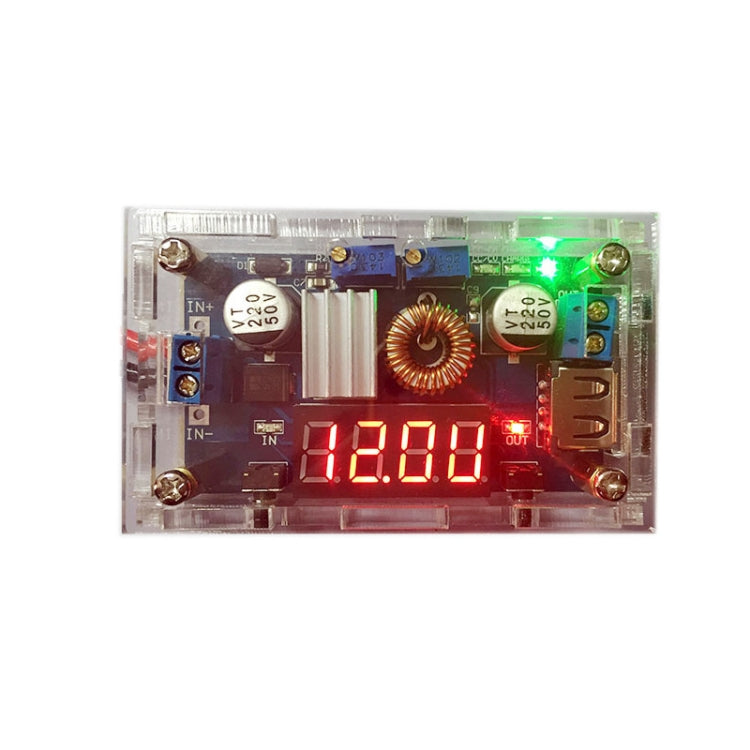

2. On-board voltage, current, power meter, simple and intuitive
3. The onboard USB interface can easily charge digital products (note: the USB output voltage is the same as the module output voltage, not a fixed 5V output, please confirm before charging USB devices)
4. High power, high efficiency, 5A, low ripple
5. Can be used as an ordinary step-down module with overcurrent protection capability
6. It can be used as a charger for various voltage values of lithium batteries, batteries, silver-cadmium silver-hydrogen batteries (battery packs), and used in solar panels, wind turbines, etc.
7. Used as a high-power LED constant current driver module
8. There are two modes of constant voltage and constant current, and there are indicators to indicate which mode the module is currently in.
9. When used as a lithium battery charger, you can set the floating charging voltage and charging current, and there is an indicator light to indicate whether it is charging or has been fully charged.
10. With current limiting protection function, the module will not burn out even if the output is short-circuited

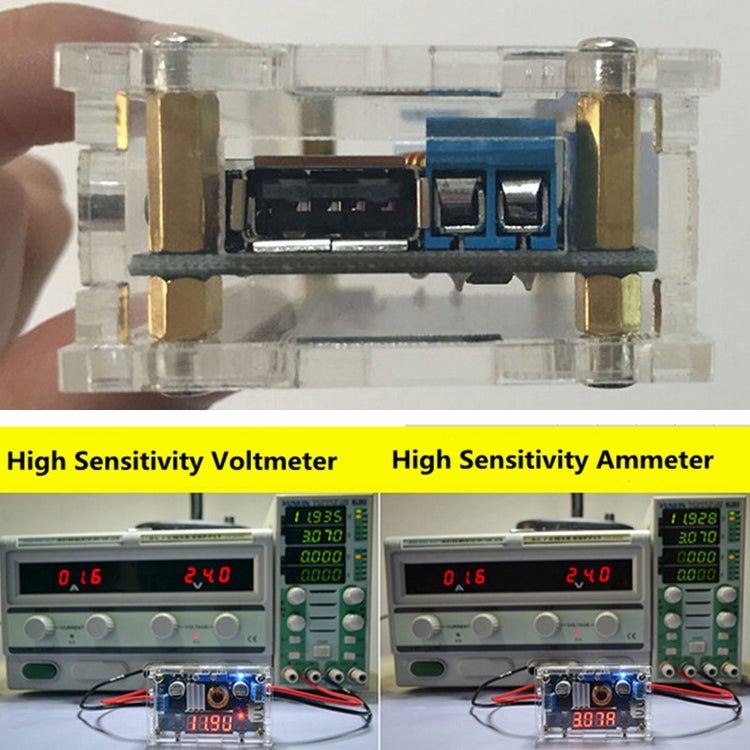

11. The on-board voltage and ammeter can be self-calibrated
12. It can display five states such as fixed input voltage, output voltage, power, current or turn display
