Waveshare Raspberry Pi PoE+ HAT Ethernet Expansion Board for Raspberry Pi 3B+/4B

Name: Waveshare Raspberry Pi PoE+ HAT Ethernet Expansion Board for Raspberry Pi 3B+/4B
Brand: WAVESHARE
SKU: DIY0180
Price: 1059.00 ZAR
Availability: InStock

R 1,059.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

Extra Surprise Discount: Add to Cart to view

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

Product Overview
1. The Raspberry Pi PoE+ HAT is a Power Over Ethernet (PoE+) accessory for the Raspberry Pi 3B+/4B. Compared to its predecessor Raspberry Pi PoE HAT, it features better cooling effect, implementing the 802.3af/at standard with 5V DC/4A larger power output, providing enough power for both Raspberry Pi 3B+/4B at max load and other peripherals at the same time.

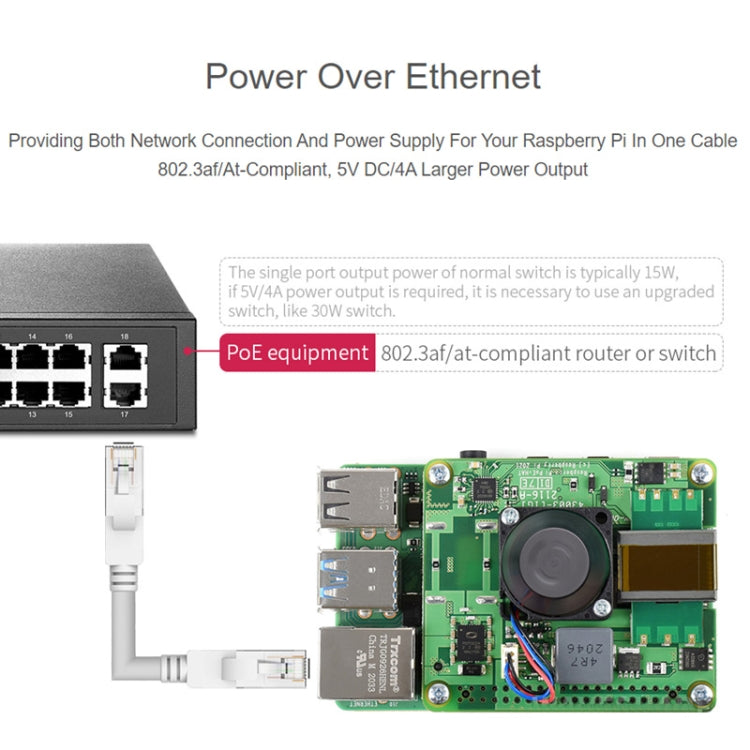

2. By using this small HAT and some proper 802.3af/at-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.

Specification
1. PoE standard: 802.3af/at
2. Input voltage: 37-57 V DC, Class 4 device
3. Output voltage/current: 5V DC/4A
4. Current sense: Yes
5. Transformer design: Planar

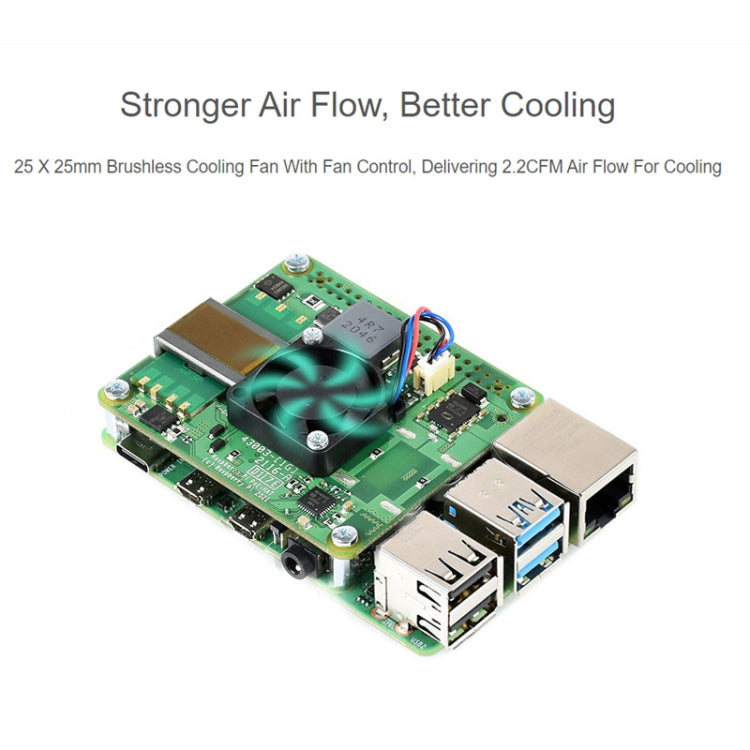

6. Fan: Controllable brushless cooling fan, delivering 2.2 CFM for processor cooling
7. Fan size: 25 x 25mm
8. Feature: Fully isolated switched-mode power supply

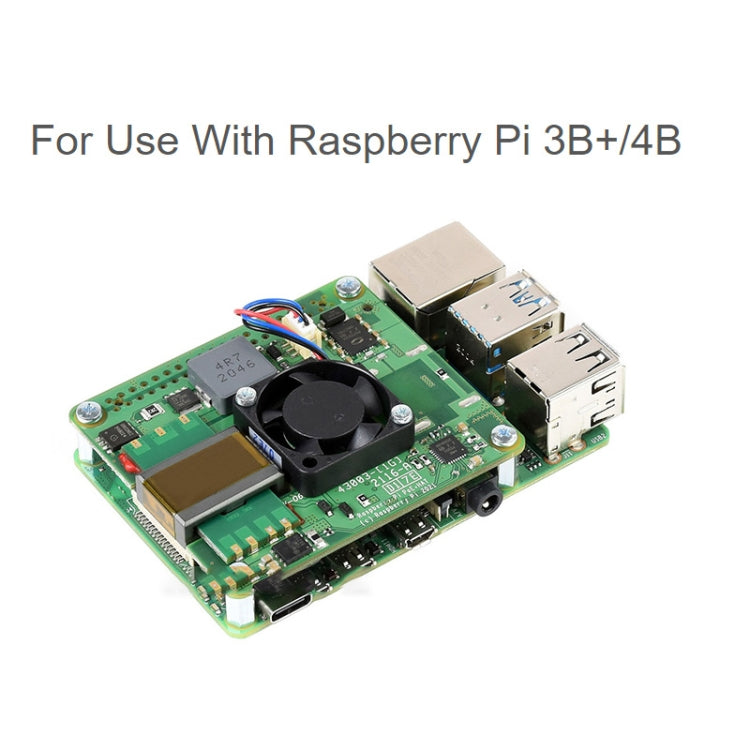

9. Compatible with: Raspberry Pi 3B+/4B

Package List
1. Raspberry Pi PoE+ HAT x1
2. Standoffs pack x1
