Description

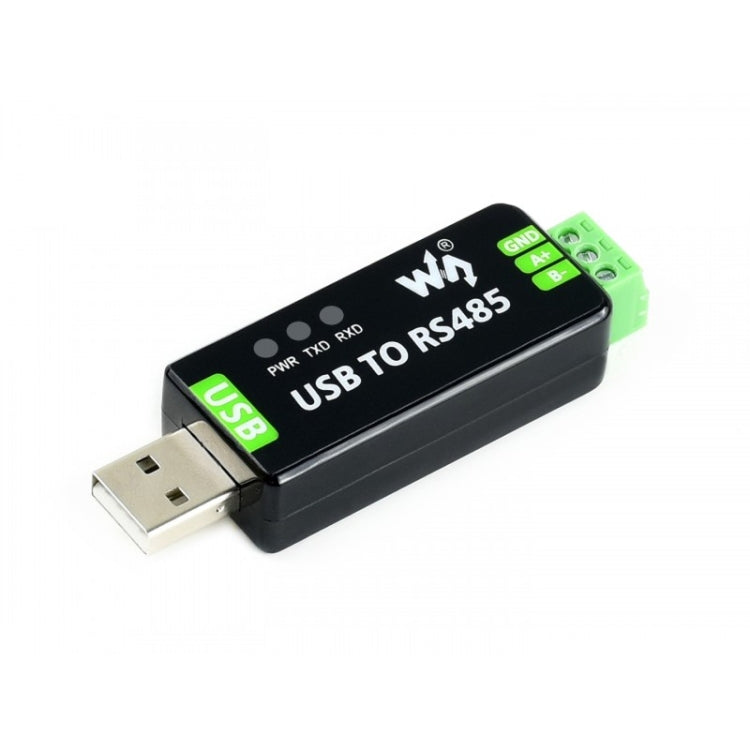

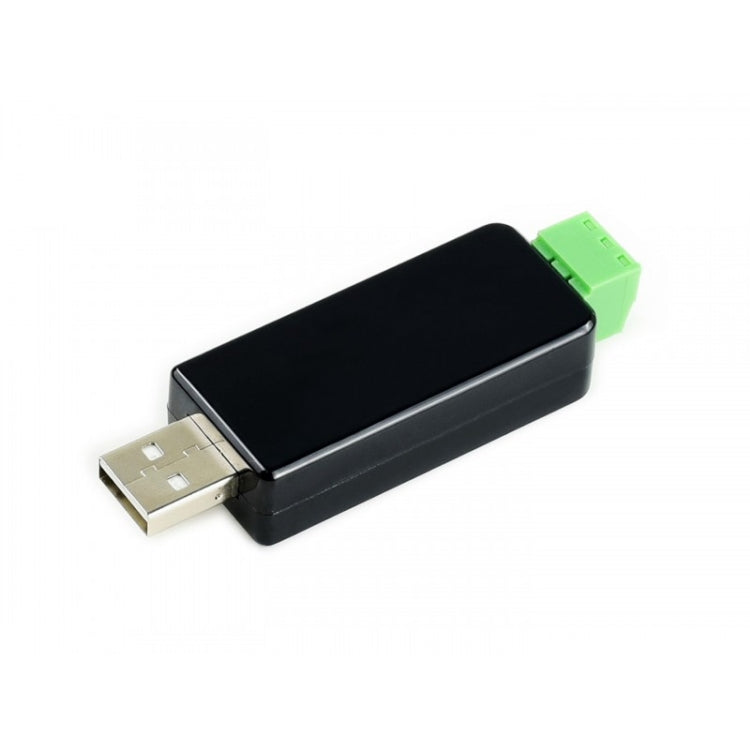

The Waveshare Industrial USB to RS485 Converter is designed for converting USB signals to RS485 communication. It is suitable for industrial control equipment and applications requiring high communication reliability.
- Product Type: Industrial converter
- Baudrate: 300-921600 bps
- Host Port: USB
- Device Port: RS485
- USB Specifications:
- Operating Voltage: 5V
- Connector: USB-A
- Protection: 200mA self-recovery fuse, ESD protection
- Transmission Distance: approximately 5m
- RS485 Specifications:

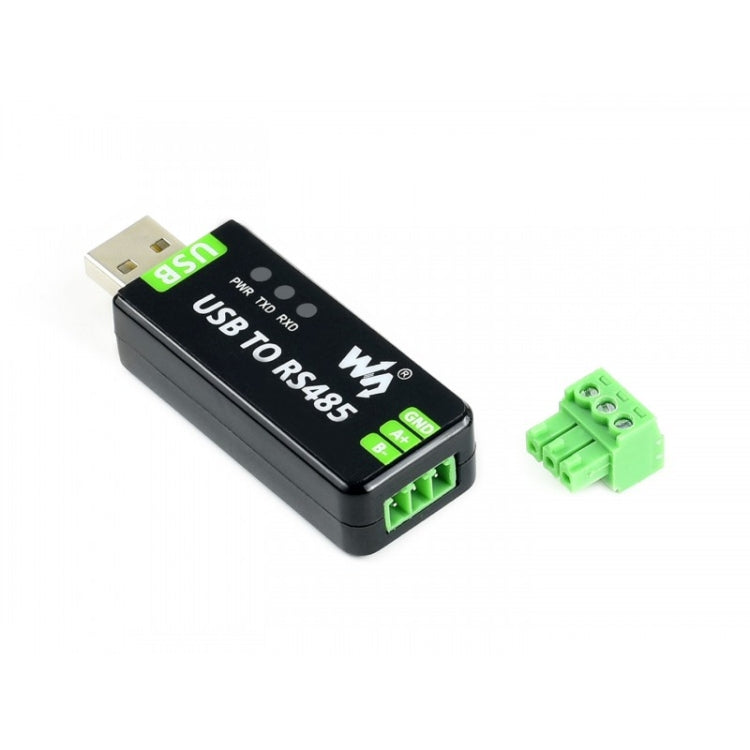

- Connector: Screw terminal
- Pins: A+, B-, GND
- Direction Control: Hardware automatic control
- Protection: 600W lightningproof and surge suppression, 15KV ESD protection (onboard 120R balancing resistor)
- Transmission Distance: approximately 1200m (low rate)
- Transmission Mode: Point-to-multipoint (up to 32 nodes; repeaters recommended for 16 nodes or more)

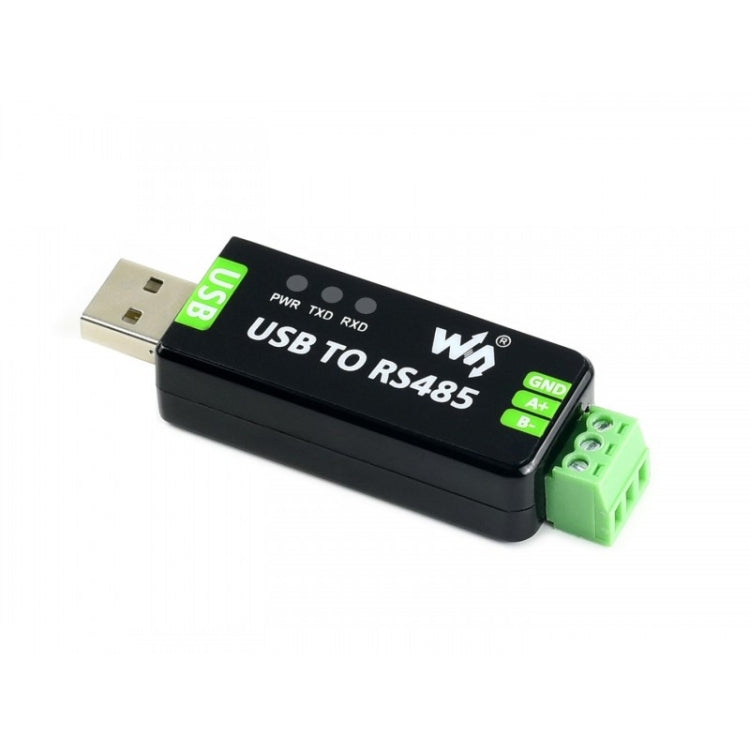

- LED Indicators:
- PWR: Red power indicator (lights up when USB connection and voltage detected)
- TXD: Red TX indicator (lights up when USB port sends data)
- RXD: Red RX indicator (lights up when device ports send data back)
- Operating Environment:
- Temperature: -15 to 70 degrees Celsius
- Humidity: 5% RH to 95% RH
- Operating System Compatibility: Mac, Linux, Android, WinCE, Windows 10/8.1/8/7/XP
- Package List: USB to RS485 Converter x 1, USB-A male to female cable x 1, Screwdriver x 1
