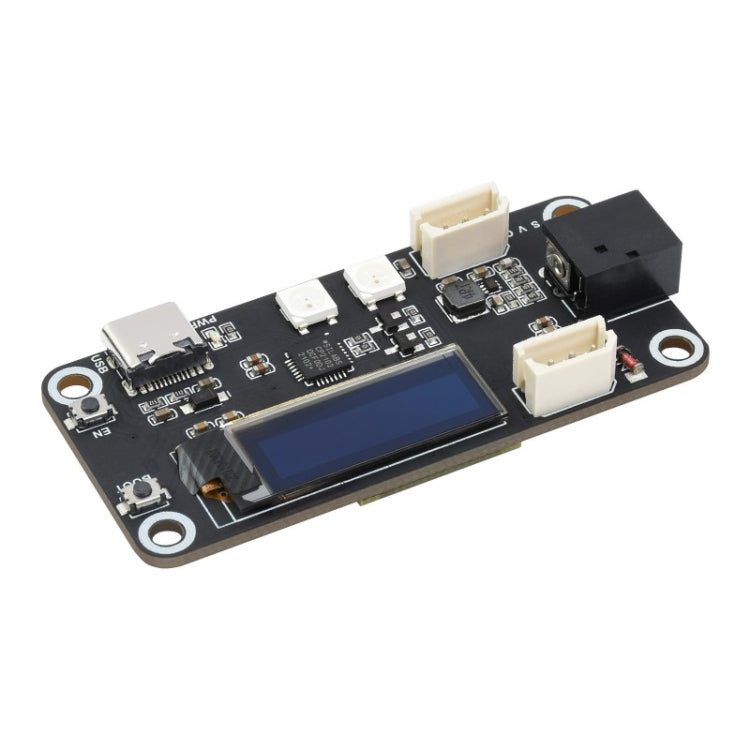

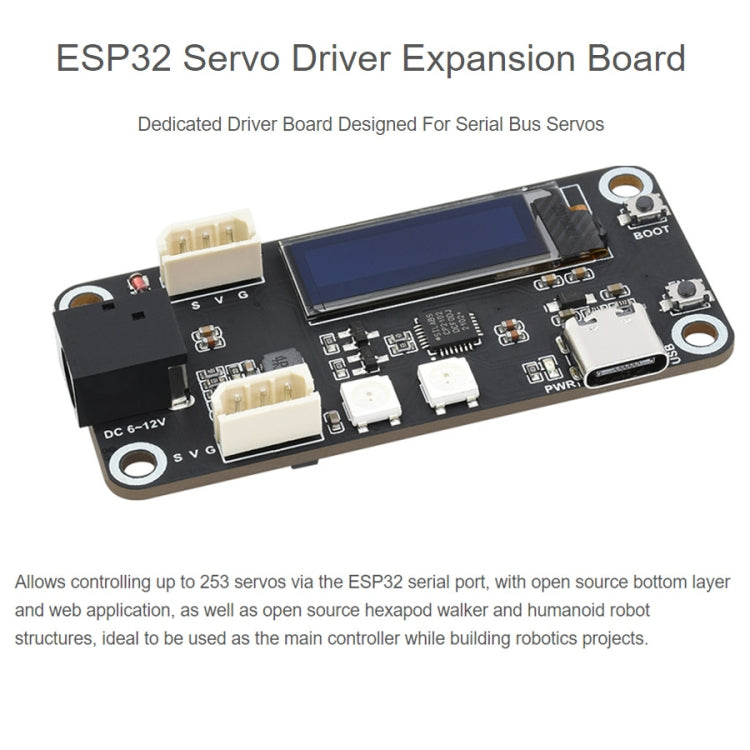

Waveshare ESP32 Servo Driver Expansion Board, Built-In WiFi and BT

Name: Waveshare ESP32 Servo Driver Expansion Board, Built-In WiFi and BT
Brand: WAVESHARE
SKU: DIY0536
Price: 489.00 ZAR
Availability: InStock

R 489.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

Features

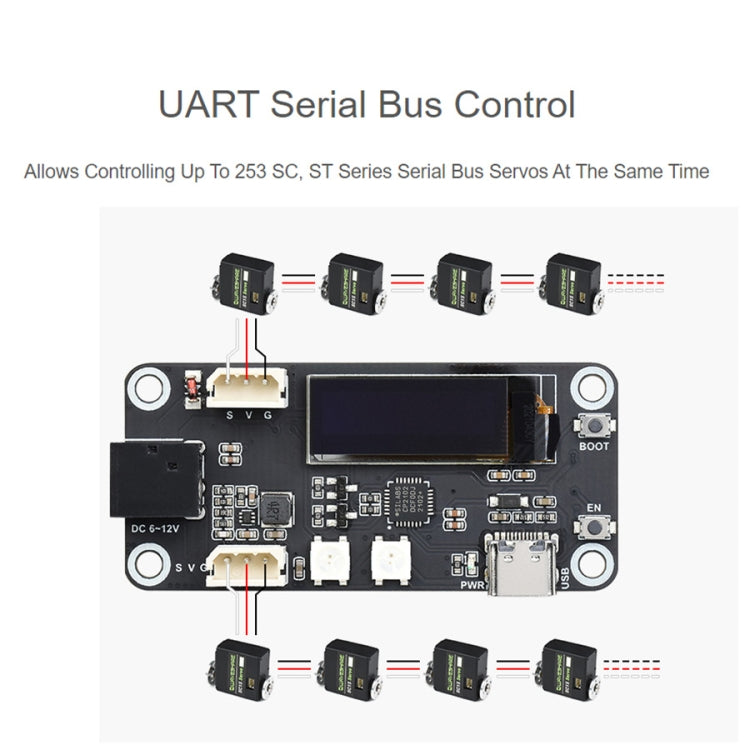

1. Allows controlling up to 253 SC, ST series serial bus servos at the same time (adequate power supply required)

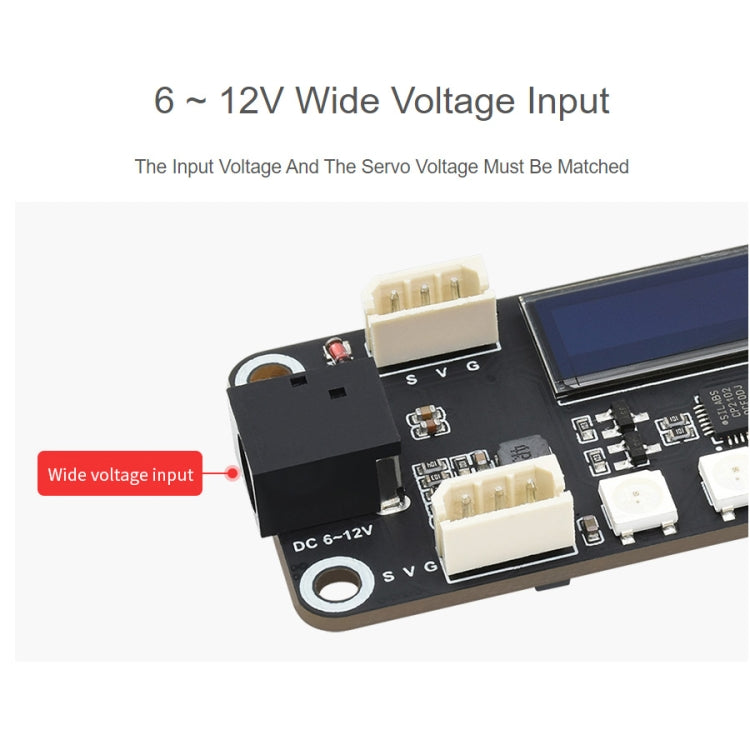

2. Wide range voltage input 6-12V (the input voltage and the servo voltage must be matched)

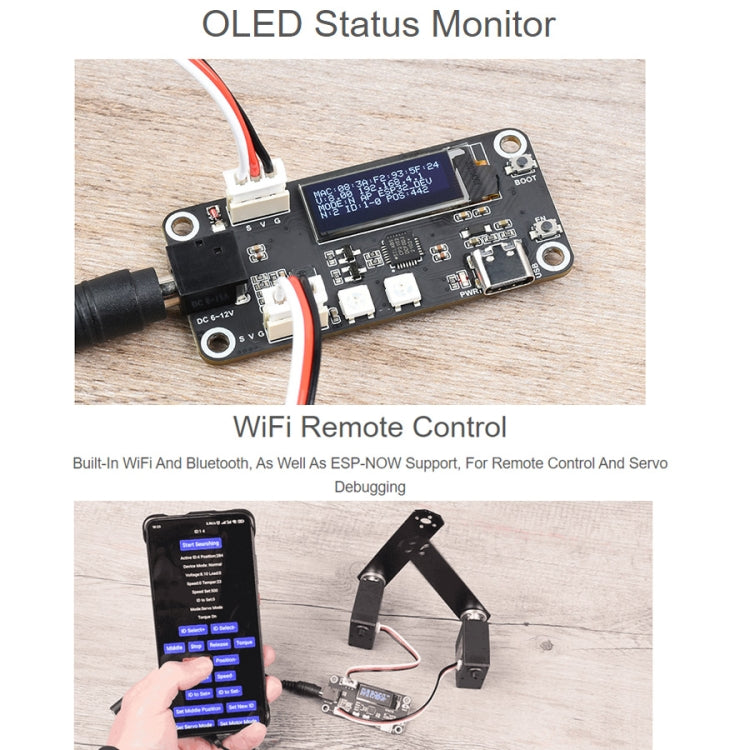

3. Built-in WiFi and Bluetooth, as well as ESP-NOW support, for remote control and servo debugging
4. Automatic download circuit for easy uploading programs

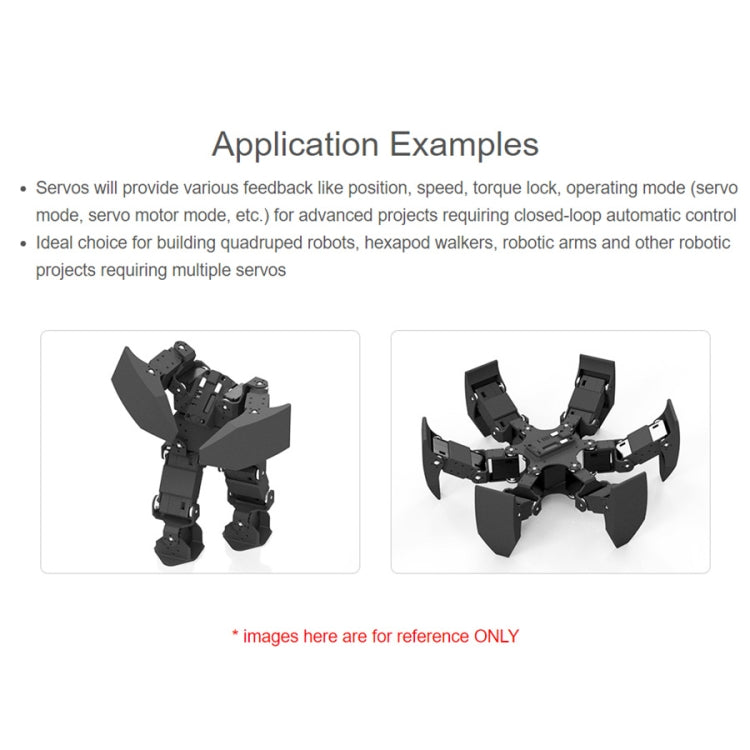

5. Open source web application and various robot structures
6. Compact size and space saving, suitable for integration into sorts of space-limited projects

Specifications
1. Power supply voltage: DC 6-12V
2. Power Connector: 5.5 x 2.1mm DC
3. Download interface: Type-C
4. Controller: ESP32
5. Control interface: UART

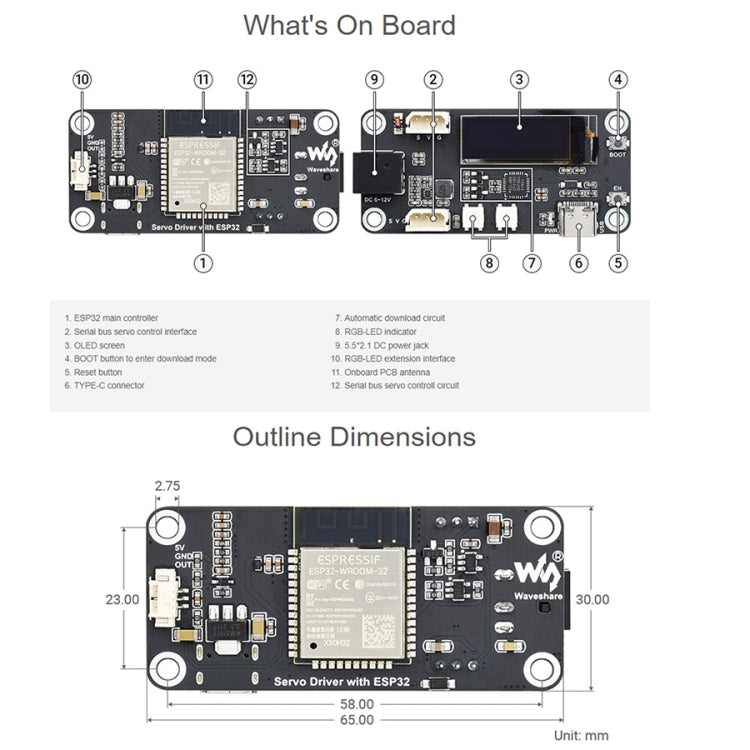

6. Dimensions: 30 x 65mm
7. Mounting hole size: 2.75mm
8. Mounting hole spacing: 23 x 58mm

Package List
1. Servo Driver with ESP32 x 1
2. Screws pack x 1
