Waveshare BME280 Environmental Sensor, Temperature, Humidity, Barometric Pressure
Waveshare BME280 Environmental Sensor, Temperature, Humidity, Barometric Pressure
Sale
Sold out
Pre-order
Regular price
R 339.00
Regular price
Sale price
R 339.00
Unit price
per
Ships in 1-3 Days
Estimated delivery:
✓ Delivered Duty Paid: No additional customs charges. All duties and taxes are included.
Couldn't load pickup availability
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Description
• Product type: Modules Expansions Accessories
• Brand: Waveshare
• Compatibility: BME280
• Material: Not specified
• Key feature: Supports I2C and SPI interfaces
• Color/Variant: Not specified
• Intended use: Environment monitoring, weather forecast, IoT projects
• Category: Consumer Electronics

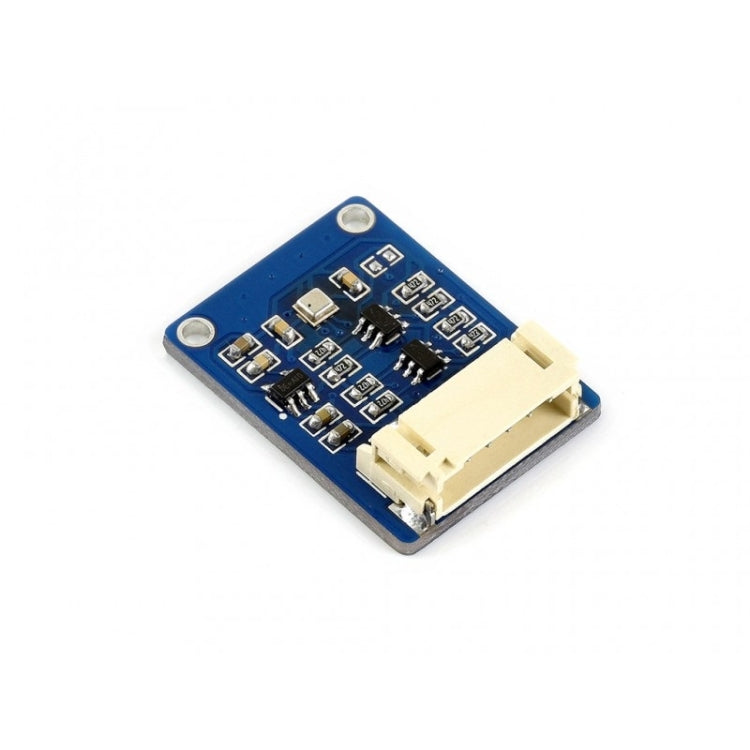

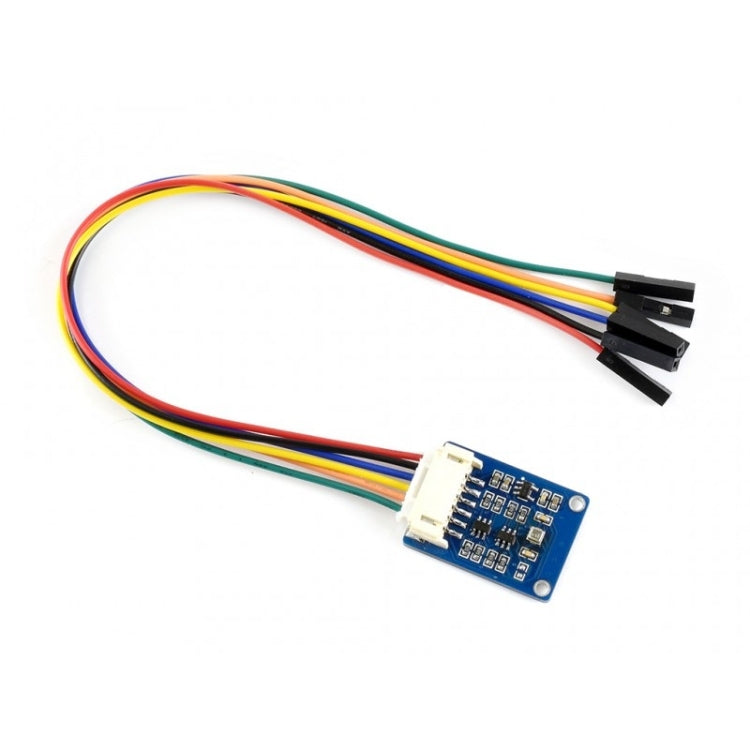

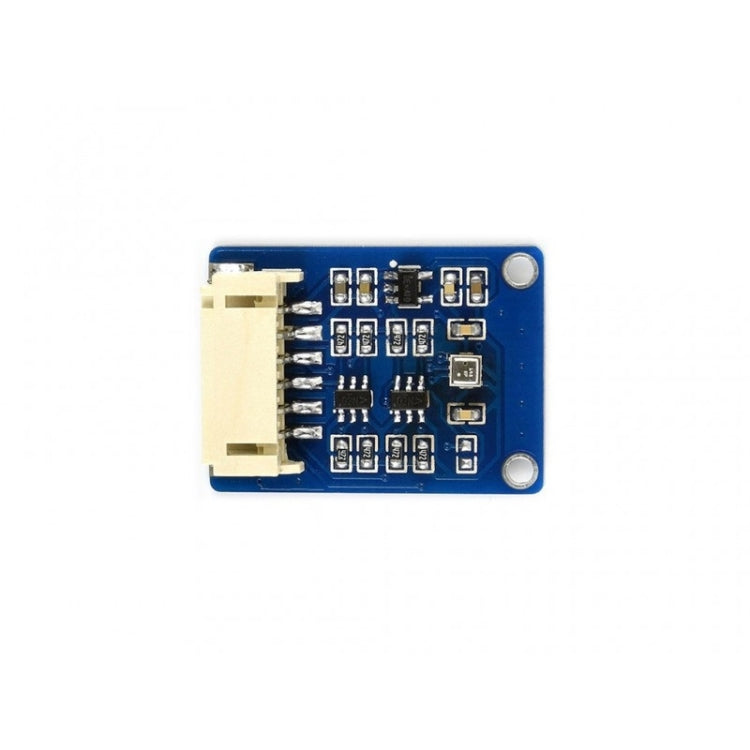

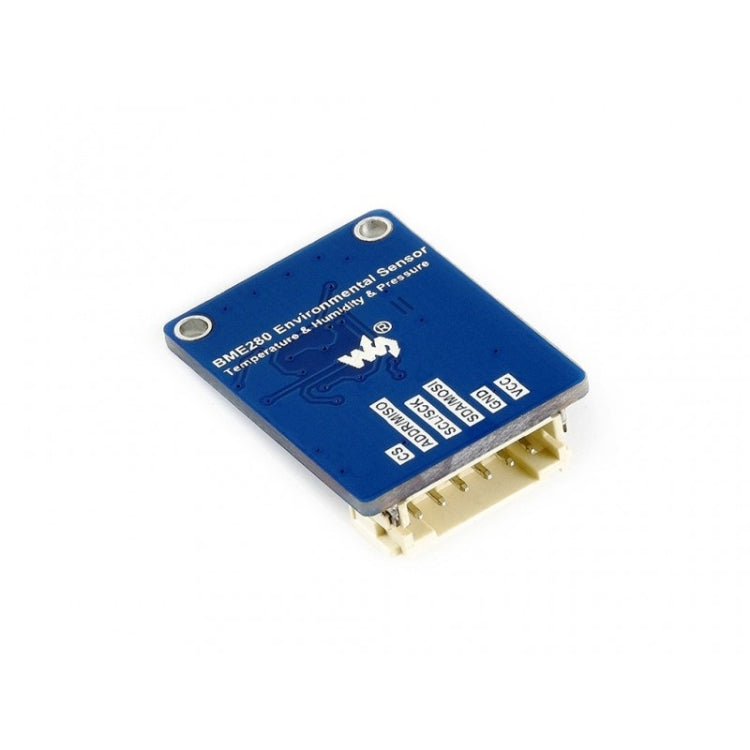

BME280 Environmental Sensor, Temperature, Humidity, Barometric PressureOverview1. A tiny sensor breakout with BME280 onboard, sensing environmental temperature, humidity, and barometric pressure. It supports both I2C and SPI interfaces, also is compatible with 3.3V/5V voltage levels.2. Due to its ultra small form factor, low power consumption, high precision with stability, the BME280 Environmental Sensor is suited for applications such as environment monitoring, weather forecast, altimeter, and IoT projects, and so on.Features1. Supports I2C (default), configurable slave address2. Supports SPI, switch to SPI via I/O setting3. Onboard voltage level translator, compatible with 3.3V/5V operating voltage4. Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)Specifications1. Operating voltage: 3.3V/5V2. Communication interface: I2C/SPI3. Temperature sensing: -40~85°C (resolution 0.01degree C, accuracy +/-1 degree C)4. Humidity sensing: 0~100%RH (resolution 0.008%RH, accuracy +/-3%RH, response time 1s, delay =<2%RH)5. Barometric pressure sensing: 300~1100 hPa (resolution 0.18Pa, accuracy +/-1hPa)6. Power consumption: <0.1mA@1Hz (H,P,T)7. Dimension: 27mm x 20mm8. Mounting hole size: 2.0mmPackage Contents1. BME280 Environmental Sensor x12. PH2.0 6PIN wire 20cm x1
• Brand: Waveshare
• Compatibility: BME280
• Material: Not specified
• Key feature: Supports I2C and SPI interfaces
• Color/Variant: Not specified
• Intended use: Environment monitoring, weather forecast, IoT projects
• Category: Consumer Electronics
BME280 Environmental Sensor, Temperature, Humidity, Barometric PressureOverview1. A tiny sensor breakout with BME280 onboard, sensing environmental temperature, humidity, and barometric pressure. It supports both I2C and SPI interfaces, also is compatible with 3.3V/5V voltage levels.2. Due to its ultra small form factor, low power consumption, high precision with stability, the BME280 Environmental Sensor is suited for applications such as environment monitoring, weather forecast, altimeter, and IoT projects, and so on.Features1. Supports I2C (default), configurable slave address2. Supports SPI, switch to SPI via I/O setting3. Onboard voltage level translator, compatible with 3.3V/5V operating voltage4. Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)Specifications1. Operating voltage: 3.3V/5V2. Communication interface: I2C/SPI3. Temperature sensing: -40~85°C (resolution 0.01degree C, accuracy +/-1 degree C)4. Humidity sensing: 0~100%RH (resolution 0.008%RH, accuracy +/-3%RH, response time 1s, delay =<2%RH)5. Barometric pressure sensing: 300~1100 hPa (resolution 0.18Pa, accuracy +/-1hPa)6. Power consumption: <0.1mA@1Hz (H,P,T)7. Dimension: 27mm x 20mm8. Mounting hole size: 2.0mmPackage Contents1. BME280 Environmental Sensor x12. PH2.0 6PIN wire 20cm x1
Questions about features, compatibility, or warranty? Chat with our support team!
