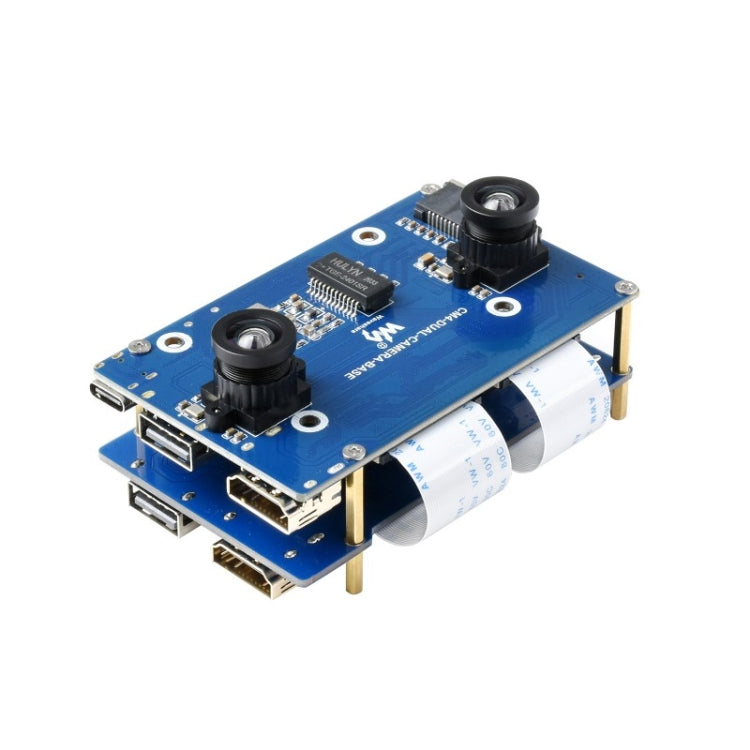

Waveshare Binocular Camera Base Board with Interface Expander for Raspberry Pi Compute Module 4

• Product type: Modules Expansions Accessories
• Brand: WAVESHARE
• Compatibility: Raspberry Pi Compute Module 4
• Material: Not specified
• Key feature: Dual-lens camera with HDMI output
• Color/Variant: Not specified
• Intended use: Everyday use
• Category: Electronics Module

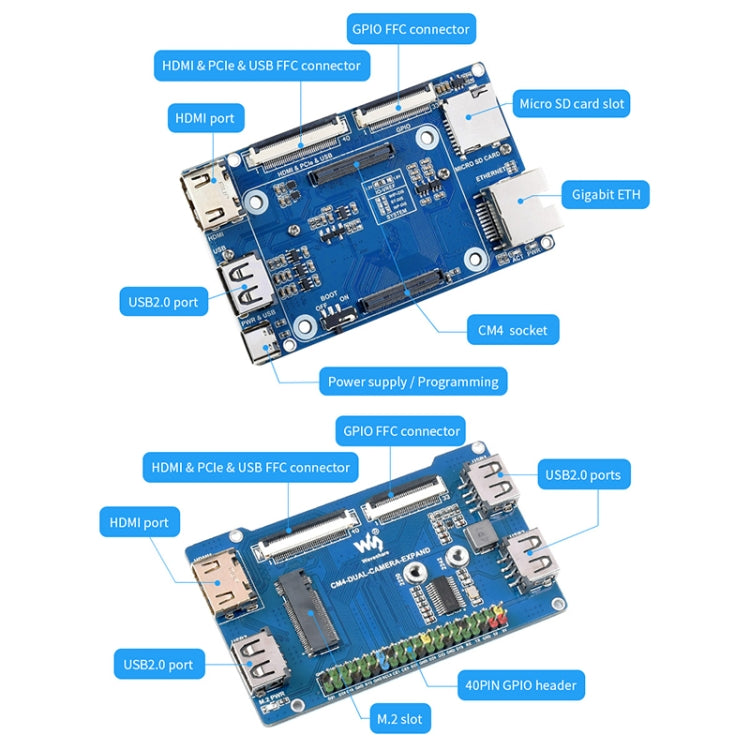

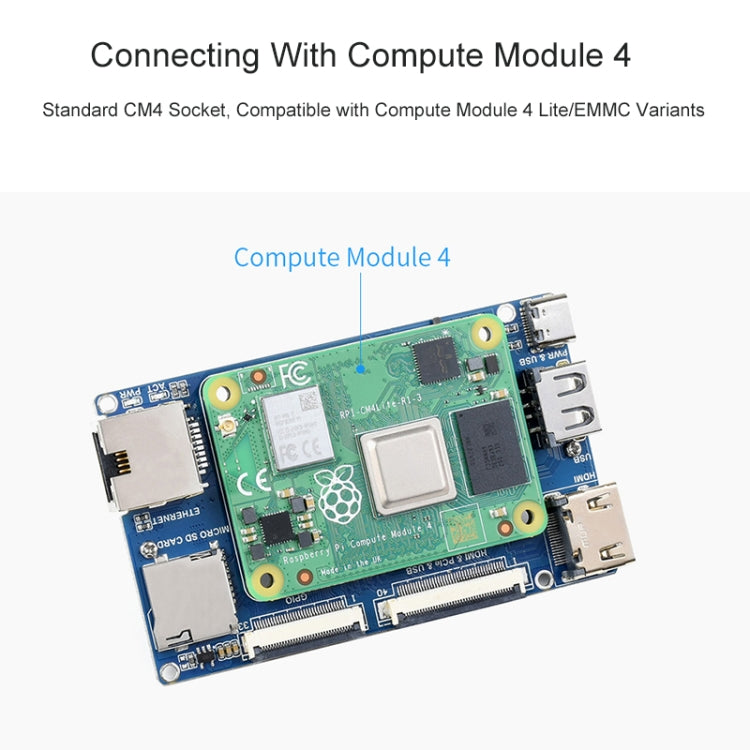

Camera Base Board1. CM4 socket: Suitable for all variants of Compute Module 4 2. Networking: Gigabit Ethernet RJ45 3. USB: USB 2.0 x 1 4. FFC connector: - HDMI-compatible & PCIe & USB FFC connector x 1 - GPIO FFC connector x 1 5. Dual-lens camera - Pixels: 8MP - Sensor: IMX 219 - Resolution: 3280 x 2464 (per channel) - CMOS size: 1/4 inch - Aperture: F2.4 - Focal length: 2.6mm - FOV: 83/73/50 degree (diagonal/horizontal/vertical) - Distortion: Less than 1% - Baseline length: 60mm 6. Video: HDMI-compatible x 1, supports 4K 30fps output 7. Storage: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants 8. Power input: 5V/2.5A 9. Dimensions: 85.0 x 51.5mmInterface Expander1. USB: USB 2.0 x 3 2. FFC connector: - HDMI-compatible & PCIe & USB FFC connector x 1 - GPIO FFC connector x 1 3. Other connector: - M.2 M KEY x 1, for connecting NVME SSD or communication module - Raspberry Pi 40PIN GPIO header x 1 4. Video: HDMI-compatible x 1, support 4K 30fps output 5. Dimensions: 85.0 x 51.5mmPackage List1. Dual camera base x1 2. Screws pack x1 3. Interface expander x1 4. FFC 2PCS x1
