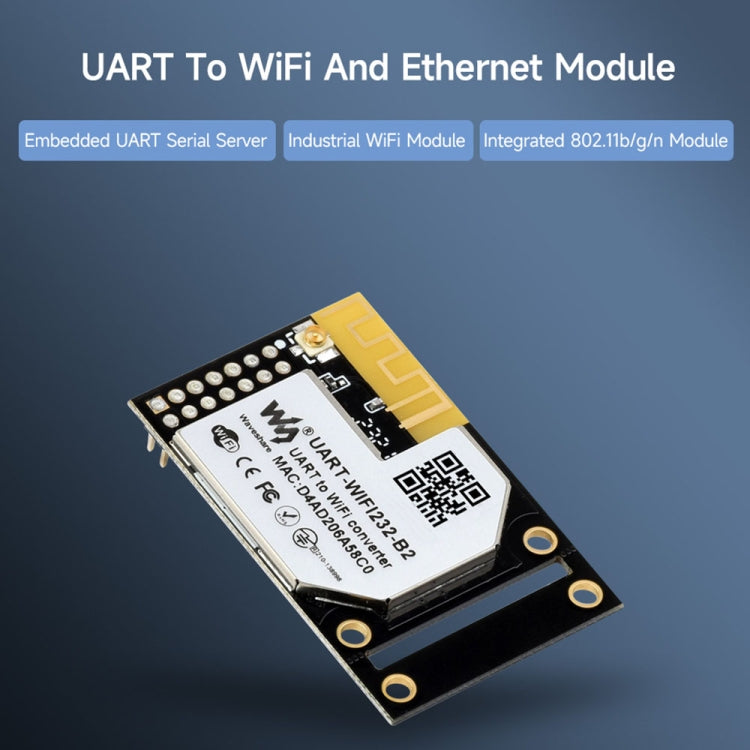

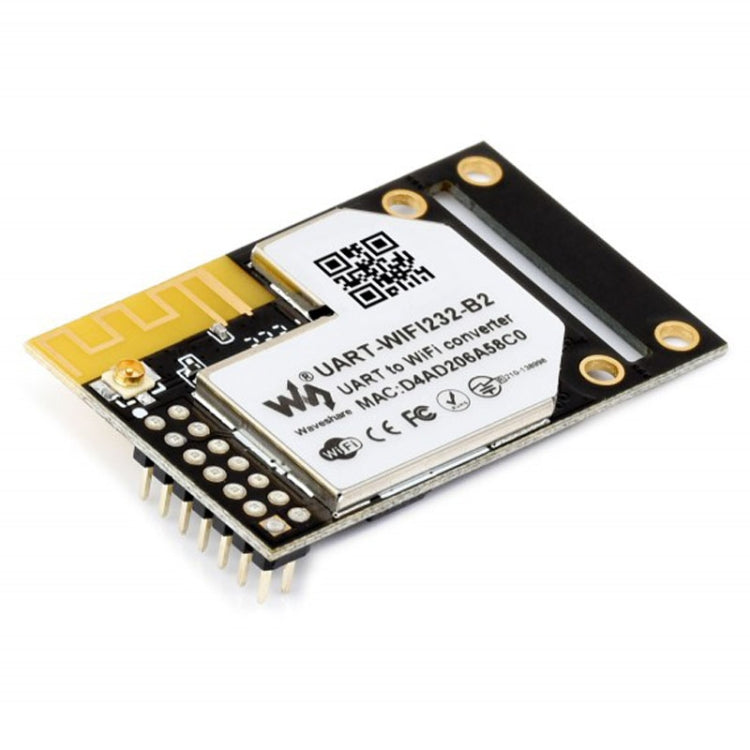

Waveshare 25116 UART to WiFi And Ethernet Module, Integrated 802.11b/g/n Module
Waveshare 25116 UART to WiFi And Ethernet Module, Integrated 802.11b/g/n Module
Sale
Sold out
Pre-order
Regular price
R 449.00
Regular price
Sale price
R 449.00
Unit price
per
Couldn't load pickup availability
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Description
• Product type: Modules Expansions Accessories
• Brand: Waveshare
• Compatibility: UART to WiFi and Ethernet
• Material: Not specified
• Key feature: Integrated 802.11b/g/n module
• Color/Variant: Not specified
• Intended use: Data collection, IoT applications
• Category: Electronics Module

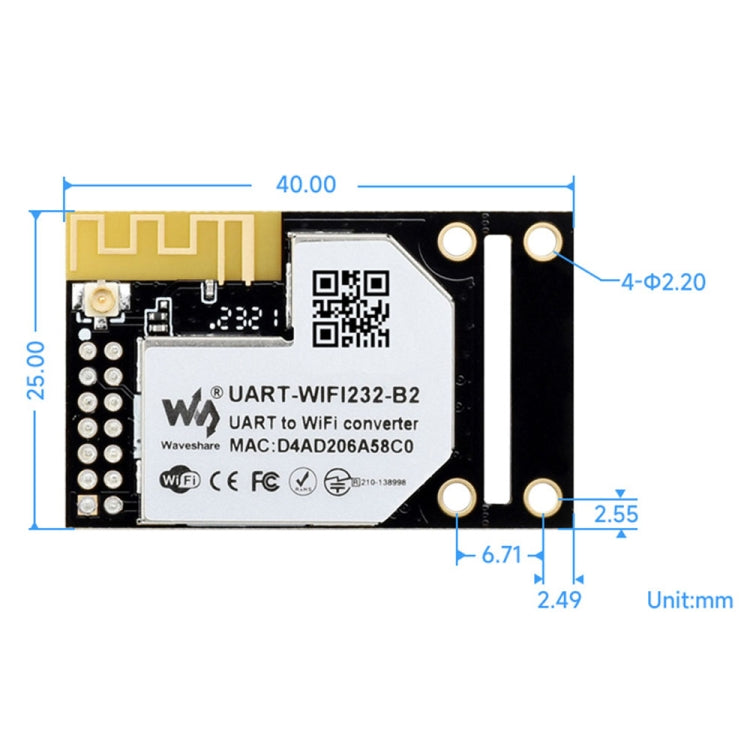

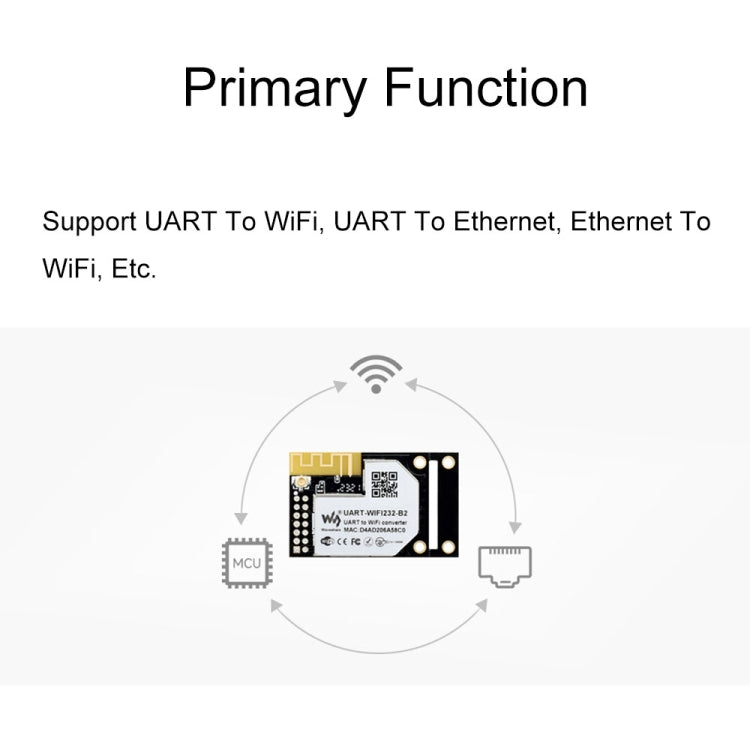

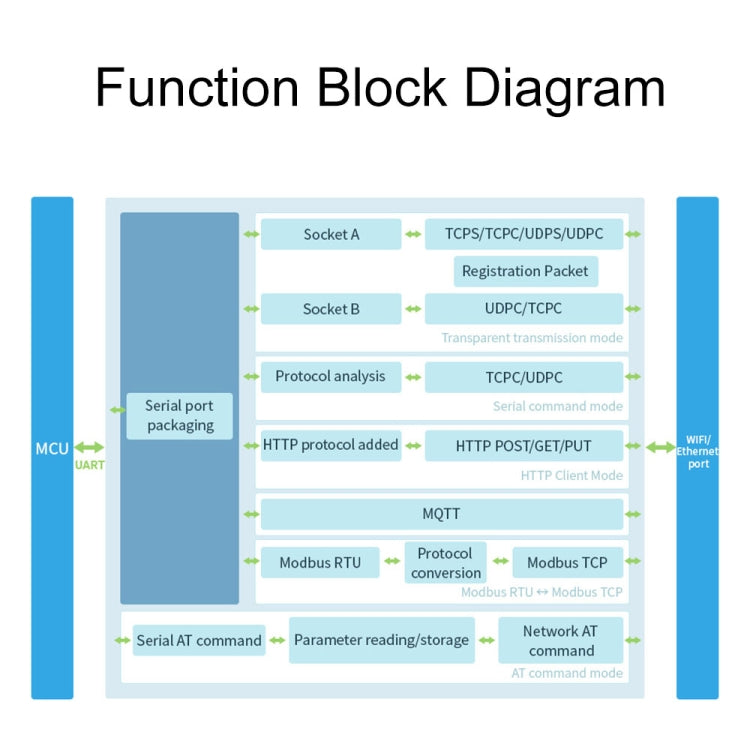

Features:1. This is an industrial-grade integrated 802.11b/g/n module that can realize two-way transparent transmission of TTL serial port, WiFi, and network port.2. It integrates multiple functions into one, including serial port server, Modbus gateway, MQTT gateway, UART to HTTPD client, etc.3. Traditional serial port devices or MCU control devices can quickly access WiFi wireless networks through this WiFi module.4. Small size and easy to install.5. Suitable for data collection, IoT gateway, security IoT, smart instrument monitoring and other applicationsProduct parameters:1. Power supply: DC 3.3V2. Power supply method: pin header3. Dimensions: 25 x 40 x 8mm4. Ethernet: 10/100M auto-negotiation (connected through pin header)5. WIFI: Complies with 802.11b/g/n6. Serial port: UART7. Frequency band: 2.412-2.484 GHz8. Wireless network: Station / AP / AP+Station mode9. Security mechanism: WPA-PSK / WPA2-PSK10. Encryption type: TKIP/AES11. Transmission power:802.11b: +19dBm (max @11Mbps)802.11g: +18dBm (max @54Mbps)802.11n: +17dBm (maximum @HT20, MCS7); +17dBm (maximum @HT40, MCS7)12. Receiving sensitivity:802.11b: -89dBm (@11Mbps)802.11g: -81dBm (@54Mbps)802.11n: -73dBm (@HT20, MCS7); -71dBm (@HT40, MCS7)13. Baud rate: 300-460800 bps14. Check digit: none, odd, even, mark, space15. Data bits: 5-9 bits16. Flow control: RTS/CTS17. Protocol: TCP/UDP/ARP/ICMP/DHCP/DNS/HTTP/MQTT18. Configuration: host, browser, serial AT command19. Communication method: TCP/IP direct communication, VCOM20. Working mode: transparent transmission, serial port command, HTTPD Client, Modbus TCP to Modbus RTU21. Operating temperature: -40 to 85 degrees Celsius22. Humidity range: 5% to 95%
• Brand: Waveshare
• Compatibility: UART to WiFi and Ethernet
• Material: Not specified
• Key feature: Integrated 802.11b/g/n module
• Color/Variant: Not specified
• Intended use: Data collection, IoT applications
• Category: Electronics Module
Features:1. This is an industrial-grade integrated 802.11b/g/n module that can realize two-way transparent transmission of TTL serial port, WiFi, and network port.2. It integrates multiple functions into one, including serial port server, Modbus gateway, MQTT gateway, UART to HTTPD client, etc.3. Traditional serial port devices or MCU control devices can quickly access WiFi wireless networks through this WiFi module.4. Small size and easy to install.5. Suitable for data collection, IoT gateway, security IoT, smart instrument monitoring and other applicationsProduct parameters:1. Power supply: DC 3.3V2. Power supply method: pin header3. Dimensions: 25 x 40 x 8mm4. Ethernet: 10/100M auto-negotiation (connected through pin header)5. WIFI: Complies with 802.11b/g/n6. Serial port: UART7. Frequency band: 2.412-2.484 GHz8. Wireless network: Station / AP / AP+Station mode9. Security mechanism: WPA-PSK / WPA2-PSK10. Encryption type: TKIP/AES11. Transmission power:802.11b: +19dBm (max @11Mbps)802.11g: +18dBm (max @54Mbps)802.11n: +17dBm (maximum @HT20, MCS7); +17dBm (maximum @HT40, MCS7)12. Receiving sensitivity:802.11b: -89dBm (@11Mbps)802.11g: -81dBm (@54Mbps)802.11n: -73dBm (@HT20, MCS7); -71dBm (@HT40, MCS7)13. Baud rate: 300-460800 bps14. Check digit: none, odd, even, mark, space15. Data bits: 5-9 bits16. Flow control: RTS/CTS17. Protocol: TCP/UDP/ARP/ICMP/DHCP/DNS/HTTP/MQTT18. Configuration: host, browser, serial AT command19. Communication method: TCP/IP direct communication, VCOM20. Working mode: transparent transmission, serial port command, HTTPD Client, Modbus TCP to Modbus RTU21. Operating temperature: -40 to 85 degrees Celsius22. Humidity range: 5% to 95%
