TTGO T-Internet-POE ESP3 Module Ethernet Adapters Extension Board

Name: TTGO T-Internet-POE ESP3 Module Ethernet Adapters Extension Board
Brand: TTGO
SKU: DIY6226
Price: 729.00 ZAR
Availability: InStock

R 729.00

Sale Sold out

FREE DELIVERY on all orders.

🔥 Buy 2 items, get 25% off 3rd item 🔥 Today only!

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

Hardware Specifications

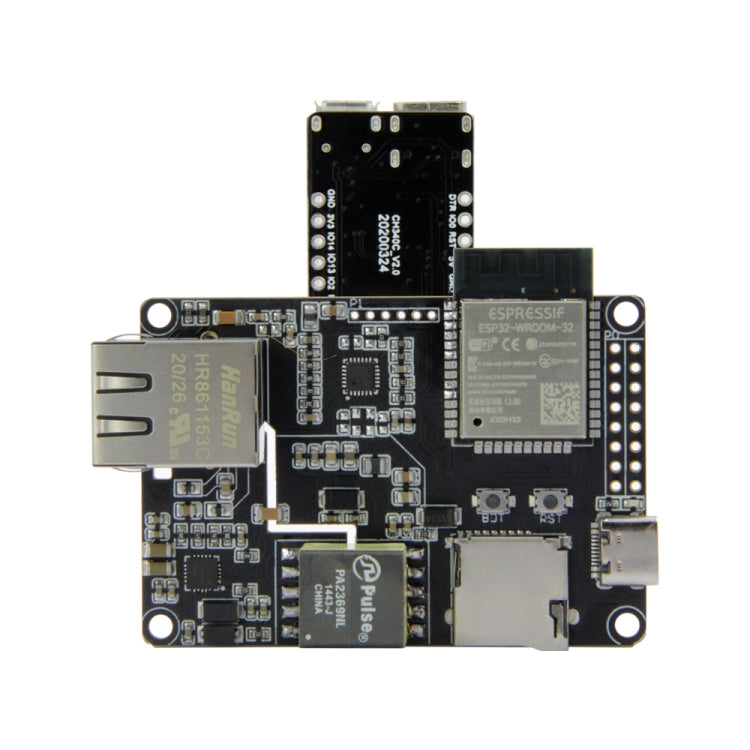

1. Chipset: ESPRESSIF-ESP32-WROOM, LAN8720A Ethernet chip, SI 3404 power management chip
2. Flash: 4MB
3. PSRAM: 8MB
4. SRAM: 520 kB SRAM
5. Button: robot, rest
6. External device: TF card slot, C-type interface, PA2369NL 1825-S transformer, HR861153C Ethernet-POE interface
7. USB to TTL: CP 2104

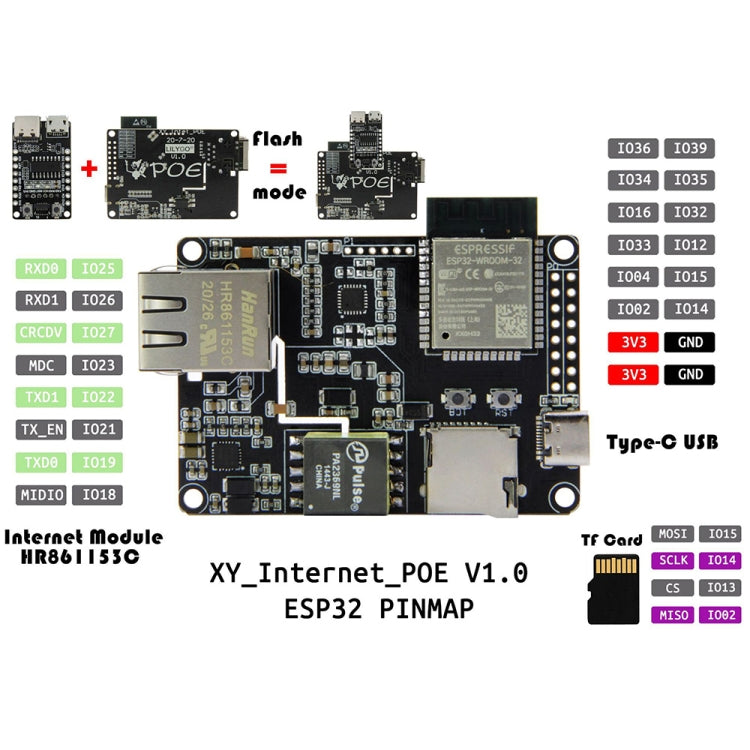

8. Modular interface: SD card, UART, SPI, I2C, PWM, I2S, ADC
9. Satellite clock: 32.768 MHz crystal oscillator
10. Operating temperature range: -40 degrees Celsius to +85 degrees Celsius

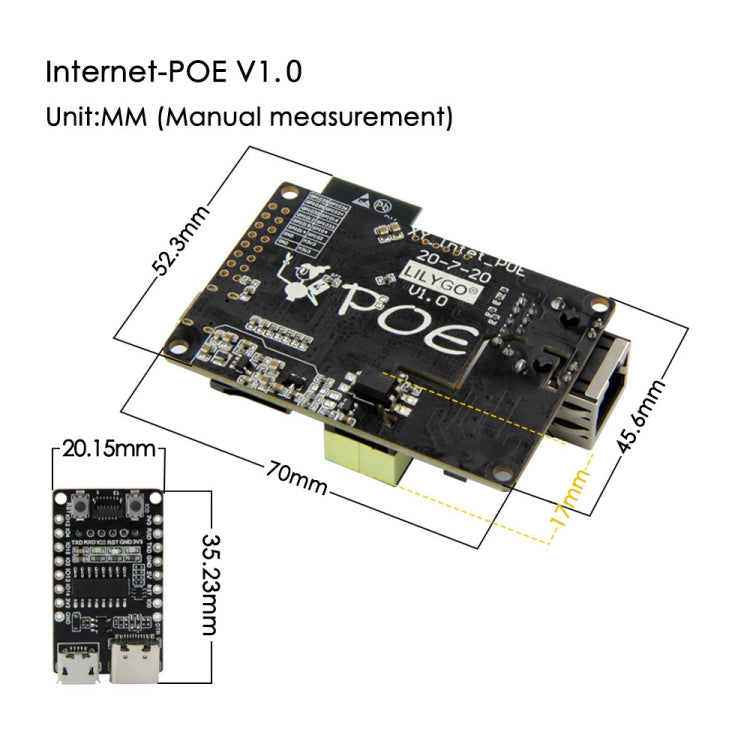

11. Size: 70x52.3x17mm
12. Weight: 26.85g

Power Specifications

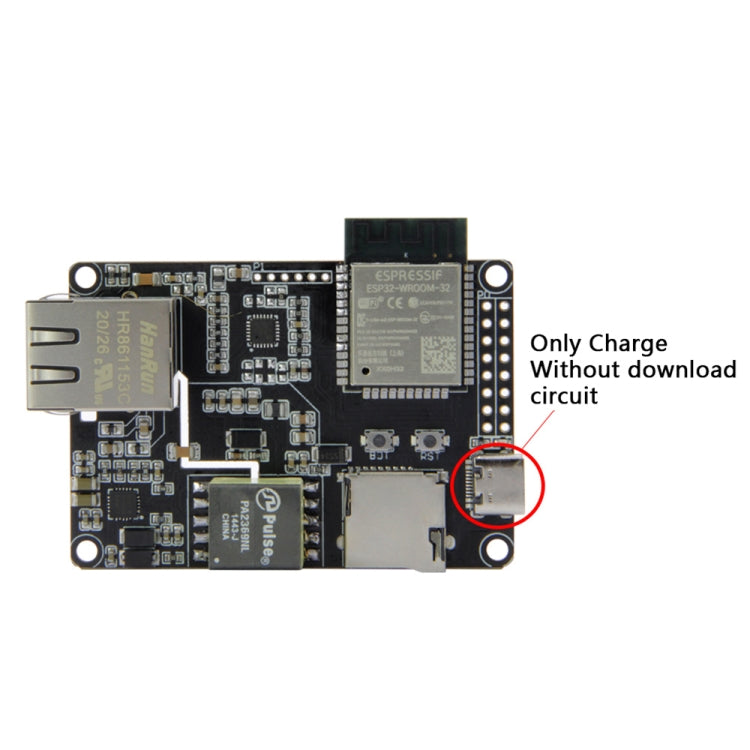

1. Power input: -C type USB 5V
2. HR861153C Ethernet-POE interface: 50V
3. Working voltage: 2.7V-3.6V
4. Output current: about 1.2A
5. Charging current: 500 mA
6. USB: Type C USB

Wi-Fi
1. Standard: FCC/CE-Red/IC/TELEC/KCC/SRRC/NCC (ESP 32 chip)
2. Protocol: 802.11 b/g/n (802.11n, acceleration 150 Mbps) A-MPDU and A-MSDU aggregation, support 0.4??S guard interval
3. Frequency range: 2.4GHz~2.5GHz (2400 m~2483.5M)
4. Transmit power: 22 dBm
5. Communication distance: 300 meters

Bluetooth
1. Protocol: Complies with Bluetooth V4.2BR/EDR and BLE standards
2. Radio frequency: -97 dBm sensitivity nzif receiver class-1 class-2 class-3 emitter AFH
3. Audio: CVSD&SBC audio

Software Specification
1. Wi-Fi mode: workstation/SoftAP/SoftAP+Station/P2P
2. Security mechanism: WPA/WPA 2/WPA 2-Enterprise/WPS
3. Encryption type: AES/RSA/ECC/SHA
4. Firmware upgrade: UART download/OTA (download and write firmware via network/host)
5. Software development: support cloud server development/sdk for user firmware development
6. Network protocol: IPv 4, IPv 6, SSL, TCP/UDP/HTTP/FTP/MQTT
7. User configuration: +instruction set, cloud server, Android/iOSapp
8. OS: FreeRTOS
