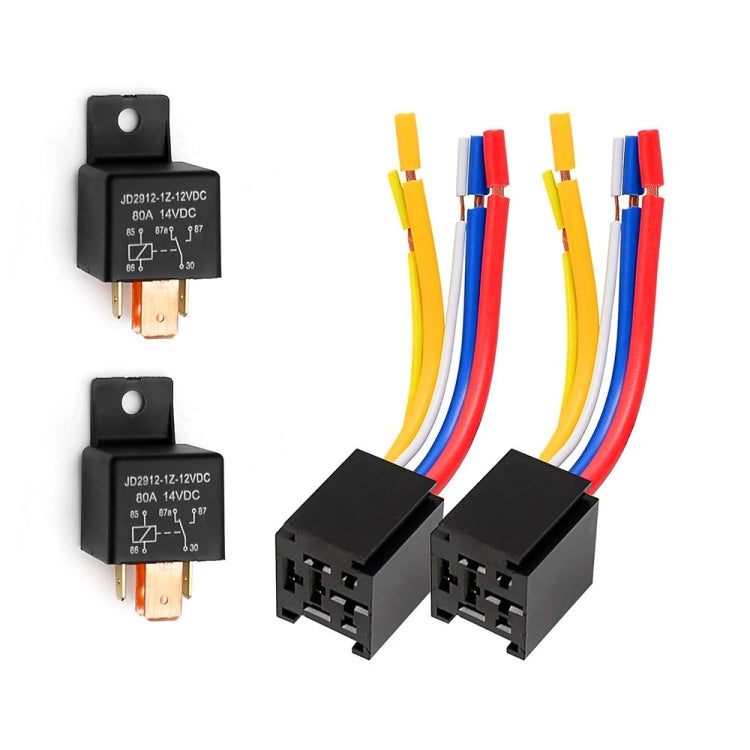

JD2912 80A 12V 5 Pin Car Relay with Wire SPDT Socket Plug

Name: JD2912 80A 12V 5 Pin Car Relay with Wire SPDT Socket Plug
Brand: PMC Jewellery
SKU: EDA0056909
Price: 349.00 ZAR
Availability: InStock

R 349.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

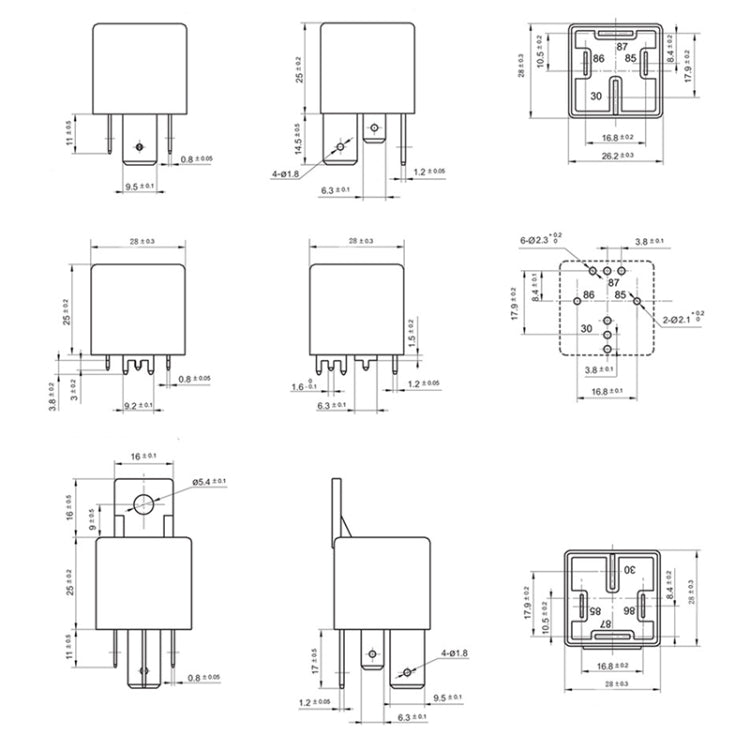

1. Overall dimensions: 28 x 28 x 25.0mm

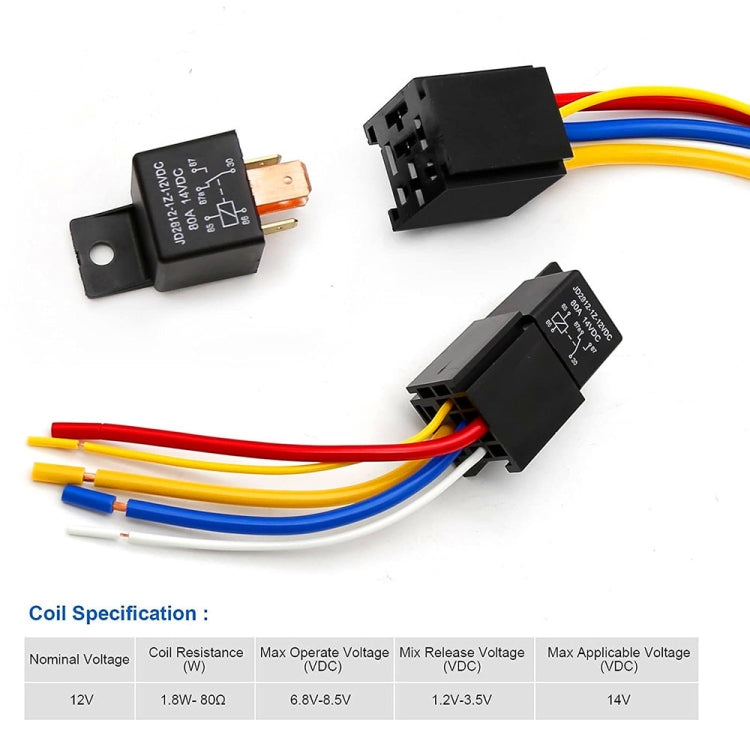

2. Coil power: 1.8W

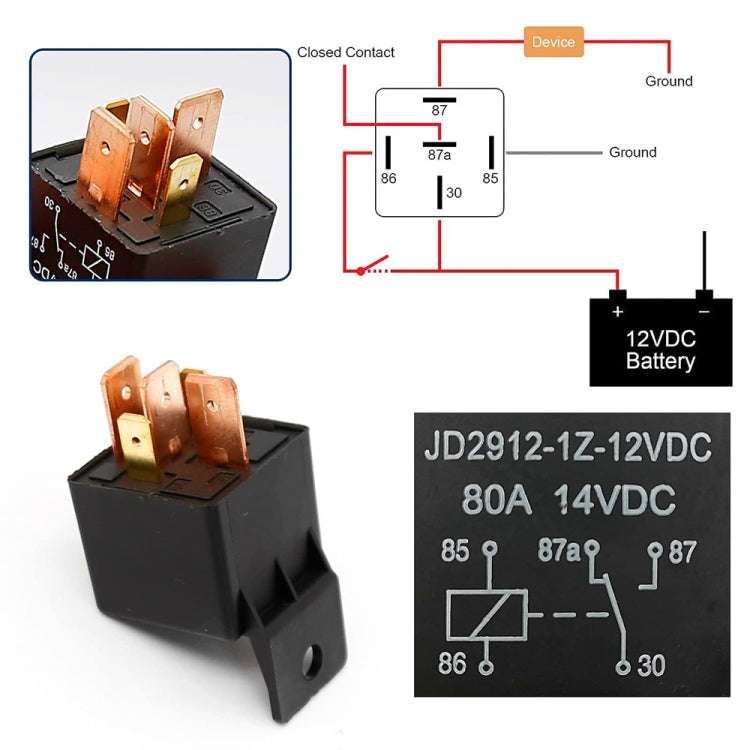

3. Contact form: 1a, 1b, 1c

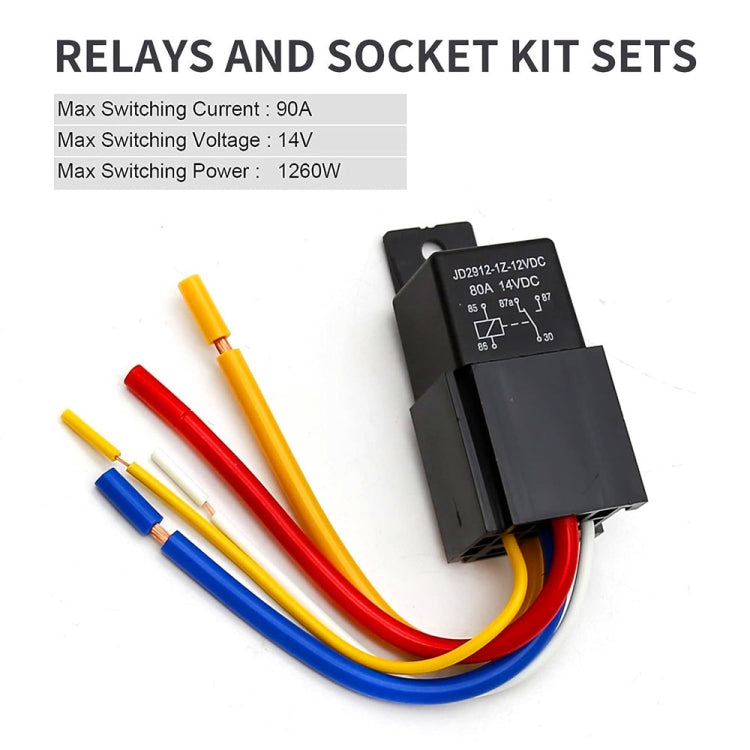

4. Contact capacity: 1a:80A 14VDC / 1b:60A 14VDC / 1c:80A/60A 14VDC
5. Coil voltage: 6VDC, 9VDC, 12VDC, 24VDC, 48VDC, 36VDC, 72VDC
6. Contact resistance: less than or equal to 50 milliohms
7. Insulation resistance: greater than or equal to 100 milliohms
8. Lifespan:
- Electrical: 1 x 100000 times
- Mechanical: 1 x 10000000 times
9. Dielectric withstand voltage: 500VAC between open contacts, 500VAC between coil contacts
10. Ambient temperature: -40 degrees Celsius to +125 degrees Celsius
11. Installation form: quick connection type and socket type
12. Product features: large capacity, can switch 80A current, and can provide standard contact forms: 1 set of normally open, 1 set of normally closed, and 1 set of switching.
13. Product use: automobile control device
14. Simple and convenient installation, easy to replace and use.
