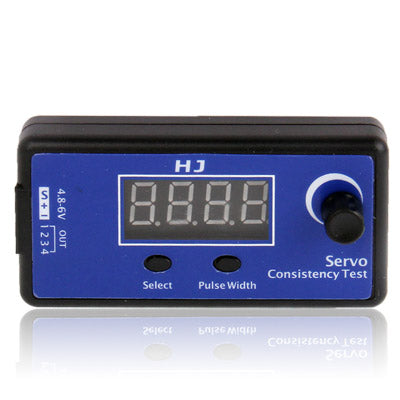

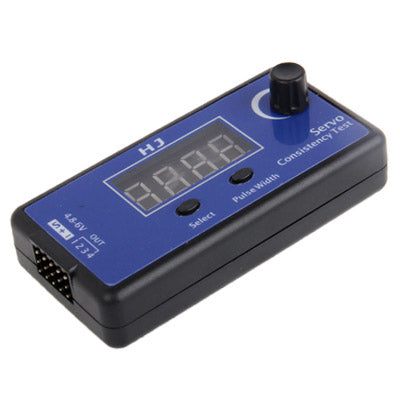

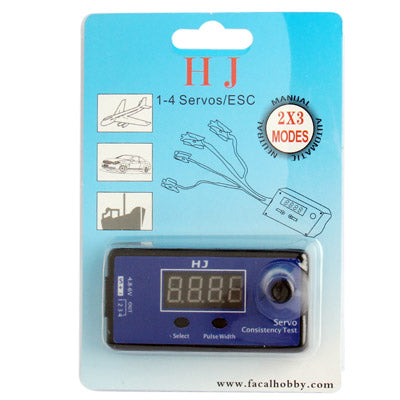

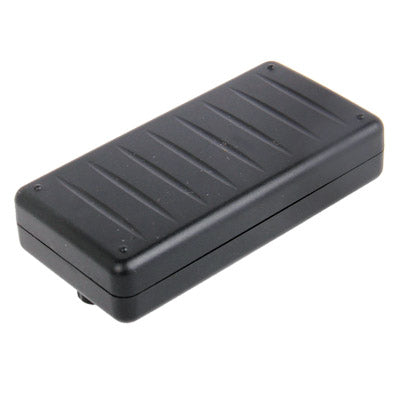

HJ Digital Servo Tester / ESC Consistency Tester for R/C Helicopter

Name: HJ Digital Servo Tester / ESC Consistency Tester for R/C Helicopter
Brand: PMC Jewellery
SKU: S-CHT-1416
Price: 319.00 ZAR
Availability: InStock

R 319.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

1. Input voltage: DC 5~6V
2. Output signal width: 800~2200us
3. Can be synchronized output control 4 servos and used to compare the performance steering gear control of the steering servo output signal can be accurate to 2us (1 milliseconds = 1000 microseconds), you can test the steering gear is able to respond to subtle changes
4. With PPM signal test function in the display, the input PPM signal changes while the input the PPM signal synchronization output to the servo
5. Energized automatically enter manual mode (Manual) 20us
6. 50H analog servo signal cycle, frequency 50Hz, rotary potentiometers to decrease or increase the width of the output pulse
7. Button the Select (Note: the key switch function, circulation patterns)
- S-1 manual mode (Manual)
- S-2 bit mode (Neutral)
- S-3 automatic mode (Automatic)
8. Keys pulse width
- 50H analog servo signal cycle 20us frequency 50Hz
- 125H digital the steering gear a signal cycle 8us frequency 125Hz
- 250H Digital Servo signal cycle 4us frequency 250Hz
9. Warning: digital or analog signal button to select the corresponding servos and then plug in the steering servo, to avoid damage to the steering servo
