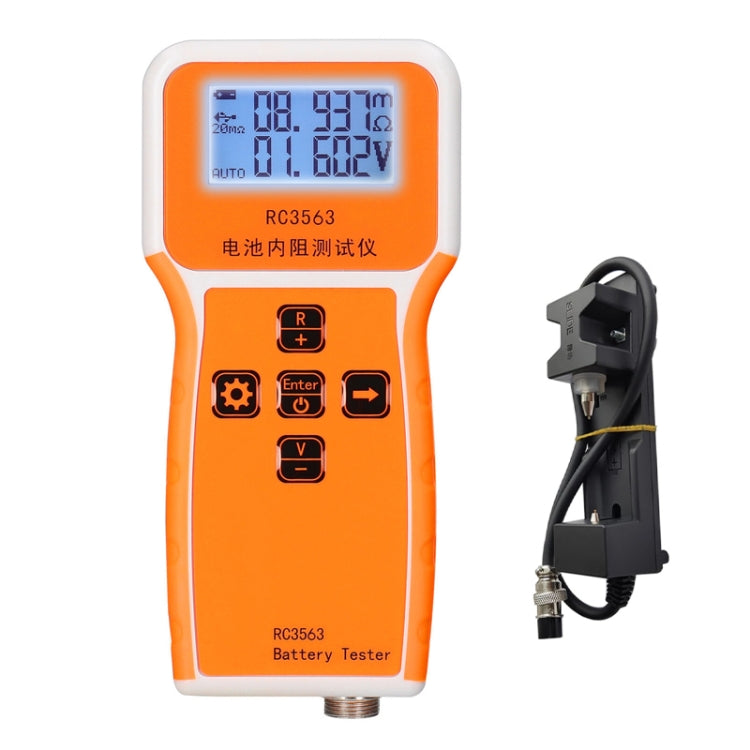

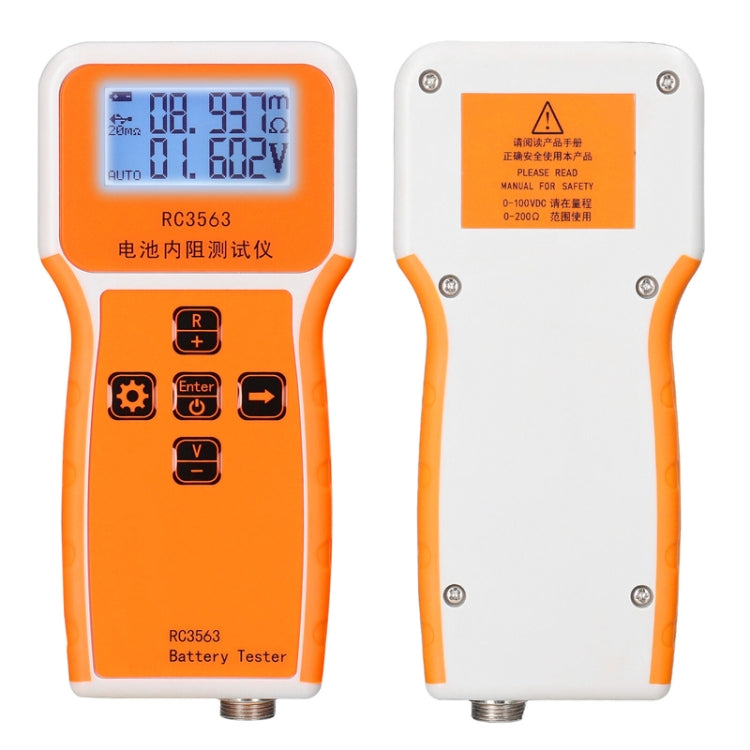

High-Precision Battery Voltage Internal Resistance Tester, Specifications: Host+Clamp
High-Precision Battery Voltage Internal Resistance Tester, Specifications: Host+Clamp
Available to order
Processing time: 1-3 days
Couldn't load pickup availability
Estimated delivery: 6-13 working days
Ships from South Africa • No import duties
Ships from International Fulfillment Center • Import tax and duties included
Ships from International Fulfillment Center • Import tax and duties excluded
Ships from International Fulfillment Center • Import tax and duties excluded
Description
High-Precision Battery Voltage Internal Resistance Tester measures battery voltage and internal resistance. It is suitable for various battery production, maintenance, and testing scenarios.
- Product Type: Battery & Resistance Tester
- Compatibility: Various batteries
- Key Feature: High precision measurement
- Speed: 5 tests per second
- Resistance Measurement Range: 1μΩ to 200Ω
- Voltage Measurement Range: 1mV to 100V DC
- Test Signal Frequency: AC 1kHz
- Test Signal Current: 20mΩ at 50mA; 200mΩ at 5mA; 20Ω at 0.5mA
- Resistance Range: 6 ranges, automatic and manual
- Voltage Range: 3 ranges, automatic and manual
- Display Update Rate: 5 times per second
- Language: Chinese and English switchable
- Additional Functions: Measures AC resistance and low resistance of capacitors
- Power Source: Built-in 1000mAh lithium battery
- Size: 80mm x 171mm
- Design Features: Intelligent control, LCD display, Kalman filter algorithm for accuracy
- Measurement Method: Four-wire test clip to minimize contact and wire resistance effects
- Applications: Battery production, maintenance, testing, scientific research laboratories
