FNIRSI SG-003A Multifunctional PWM Signal Generator 4-20ma Voltage Current Calibrator, EU Plug(Blue)

Name: FNIRSI SG-003A Multifunctional PWM Signal Generator 4-20ma Voltage Current Calibrator, EU Plug(Blue)
Brand: FNIRSI
SKU: TBD0603563801A
Price: 1779.00 ZAR
Availability: InStock

R 1,779.00

Sale Sold out

FREE DELIVERY on all orders.

🔥 Buy 2 items, get 25% off 3rd item 🔥 Today only!

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

1. It is mainly used for debugging of industrial site PLC, process instrument, electric valve, etc.
2. Friendly operation interface is easy to use
3. Small size, light weight, long standby time, high precision, easy to carry when going out to work

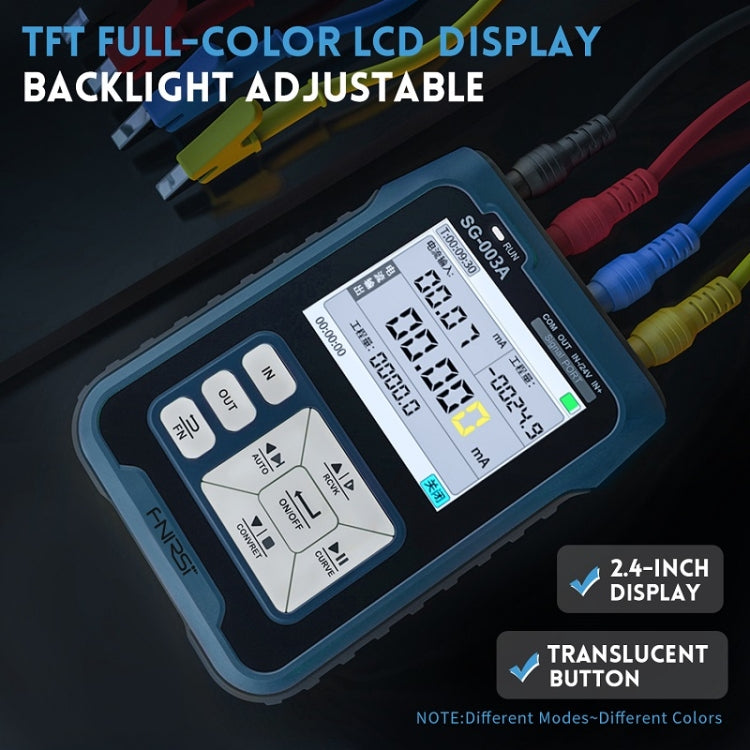

4. Adjustable button backlight and high-definition TFT color LCD screen make it more convenient for users to operate at night and during the day
5. With conventional signal input and output functions
6. Voltage and current have automatic output function, and three modes of single rise, single fall and cycle can be selected
7. With input and output conversion, voltage conversion active current mode, passive mode and current conversion voltage mode
8. The output has a custom function, and the upper and lower limits of the output can be set arbitrarily
9. Voltage input diagram, current input diagram, frame rate is 10 frames
10. PWM output can set frequency and duty cycle separately

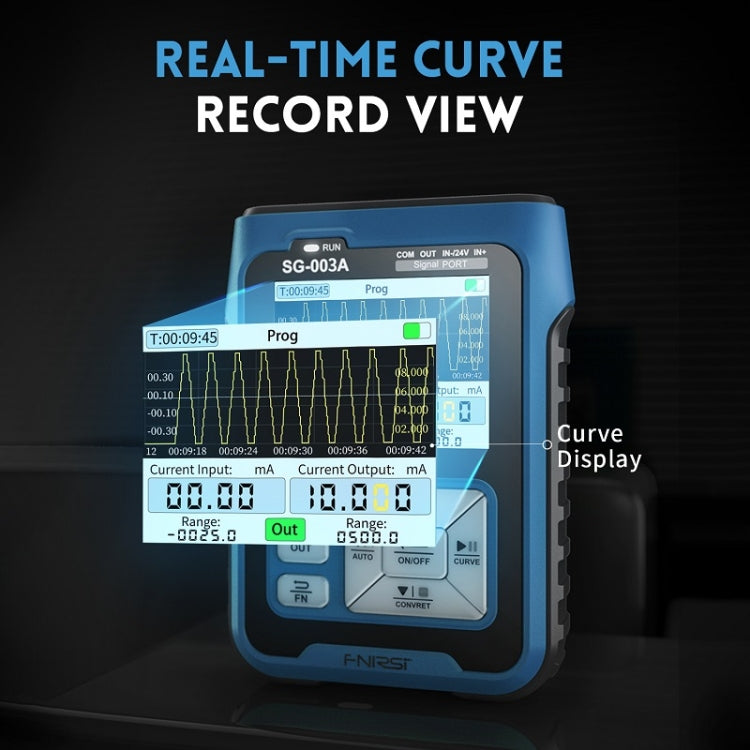

11. Real-time curve: real-time observation of voltage and current changes
12. Powered by large-capacity lithium battery, charged by Type-c interface (5V)
13. Lithium battery capacity 3000mah, super long working time

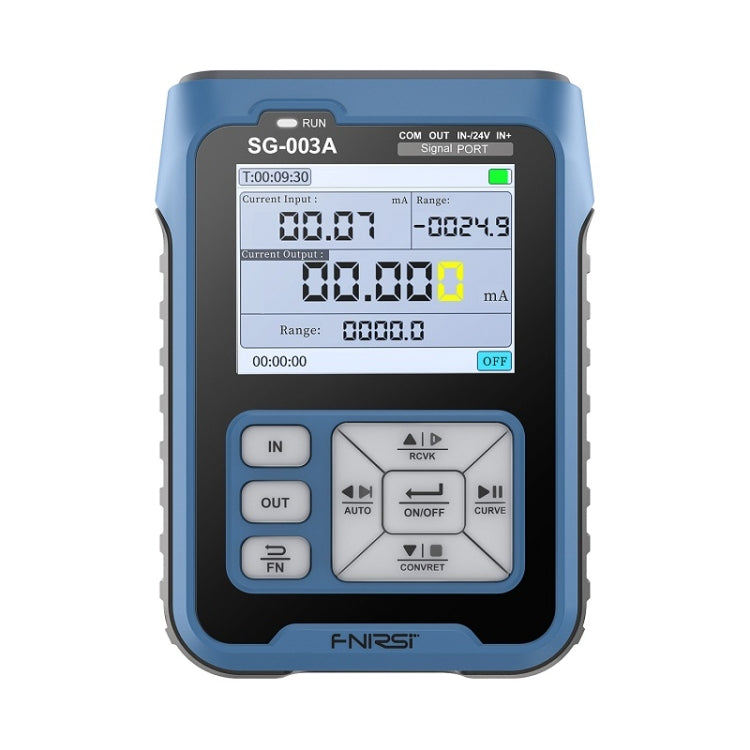

14. 2.4-inch high-definition TFT color LCD screen, more eye-catching reading
15. Standby time: 26 hours The use time varies according to the usage (20mA continuous output can be 8-10 hours)
16. Internal reverse and overcurrent protection, protection voltage 30V

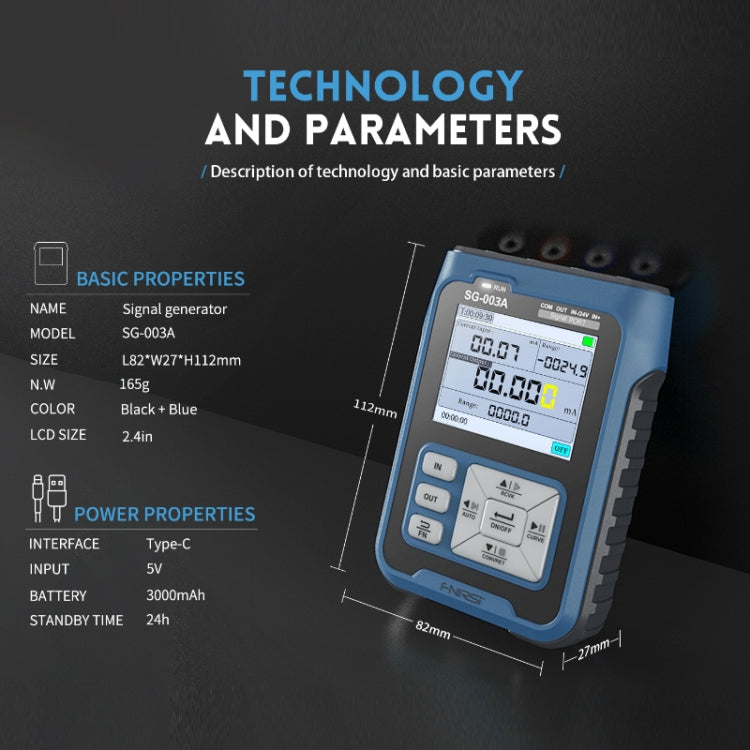

17. Dimensions: 82x27x112mm
18. Weight: 65 grams

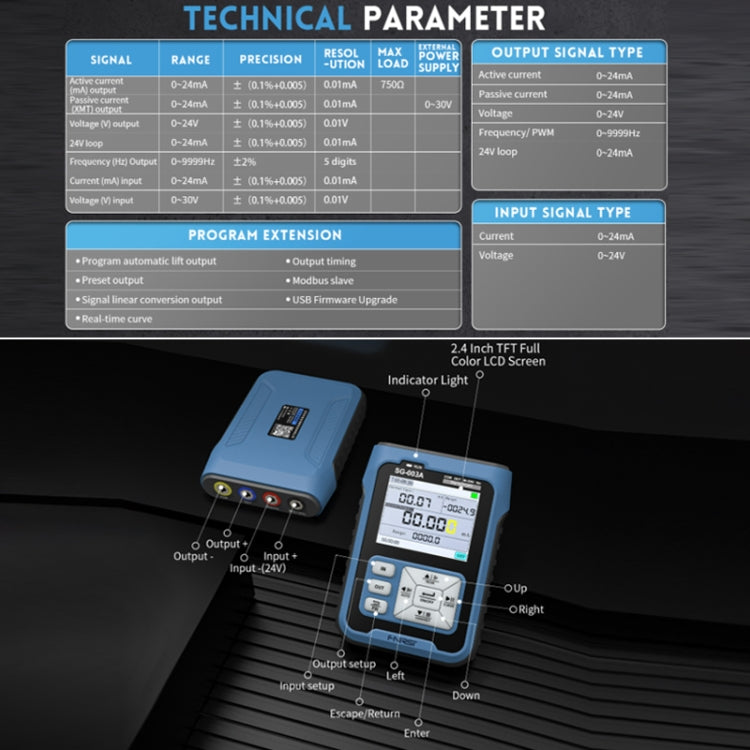

Active current output:
1. Range: 0~24mA
2. Resolution: 0.01 mA
3. Load (MAX): 750 ohms

Passive current output:
1. Range: 0-24mA
2. Resolution: 0.01 mA
3. The external power supply can reach 30V

Voltage output:
1. Range: 0-24V
2. Resolution: 0.01v

24V voltage output:
1. Drive current: 24mA
2. Resolution: 0.01mA

Current input measurement:
1. Range: 0-24mA
2. Resolution: 0.01 mA

Voltage input measurement:
1. Range: 0-30V
2. Resolution: 0.01V

PWM output (frequency):
1. Range: 0-9999Hz
