Description

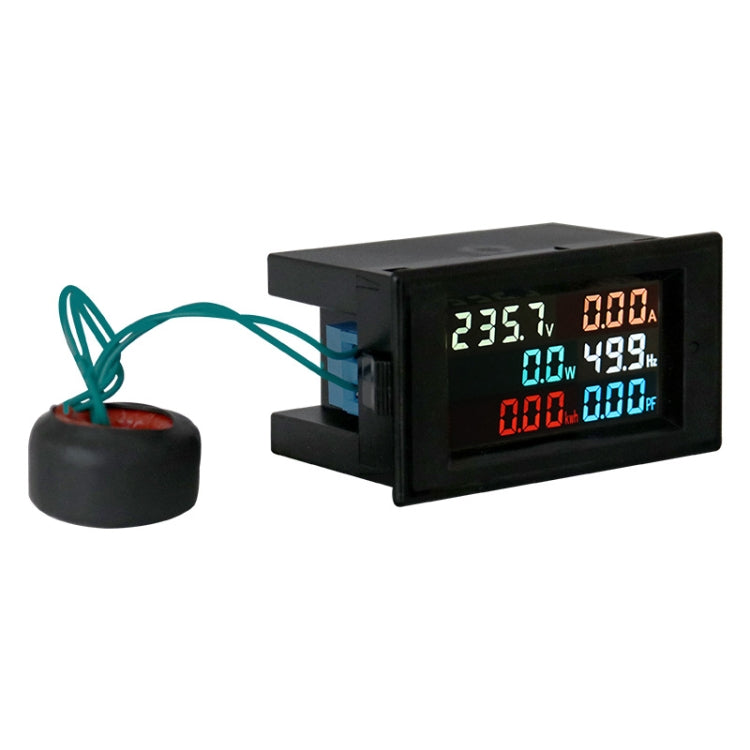

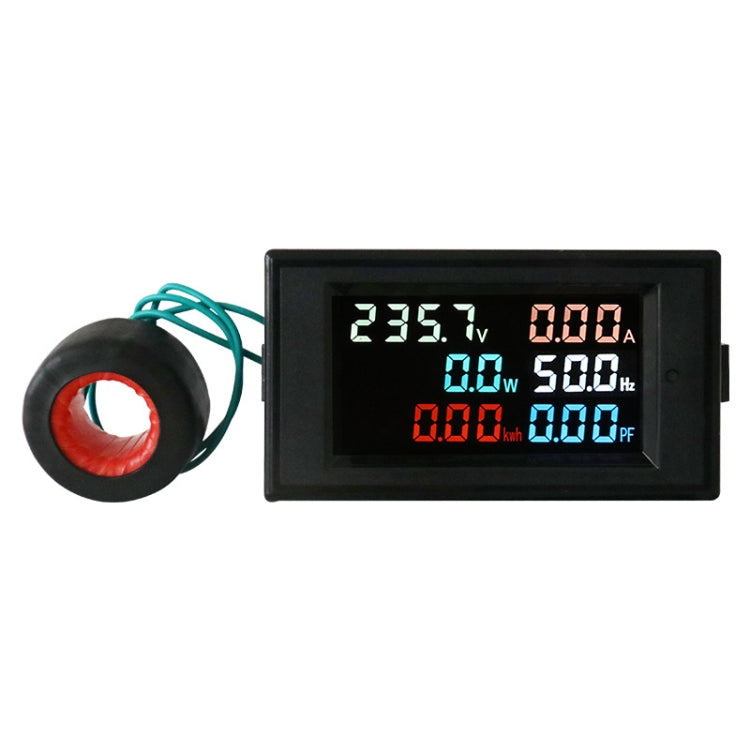

The D69-2058 is a multifunctional digital display instrument designed to measure and display six electrical parameters simultaneously. It is suitable for monitoring AC voltage, current, power, power factor, frequency, and energy consumption in various electrical systems.
- Measurement Parameters: AC voltage, AC current, active power, power factor, frequency, electric energy
- Display: Color high-definition LCD screen

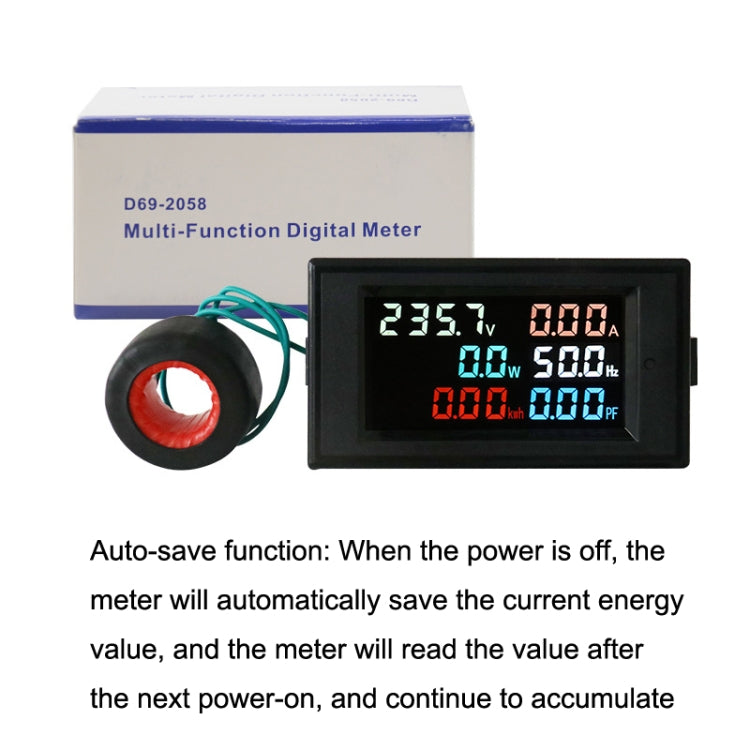

- Auto-save function: Saves current energy value when power is off
- Measurement speed: Approximately 2 times per second
- Dimensions: 79mm x 43mm x 48mm
- Measuring Range:
- AC Voltage: AC 80.0-300.0V or AC 200.0-450.0V
- AC Current: AC 0-99.99A (resolution 0.01A); displays 100.0A when exceeding 100A
- Power Frequency: 45.0Hz-65.0Hz
- Power Factor: 0.00-1.00 PF
- Active Power: 0-45000W (resolution 0.1W for 0-9999.9W; 1W for above)
- Electric Energy: 0-99999 kWh

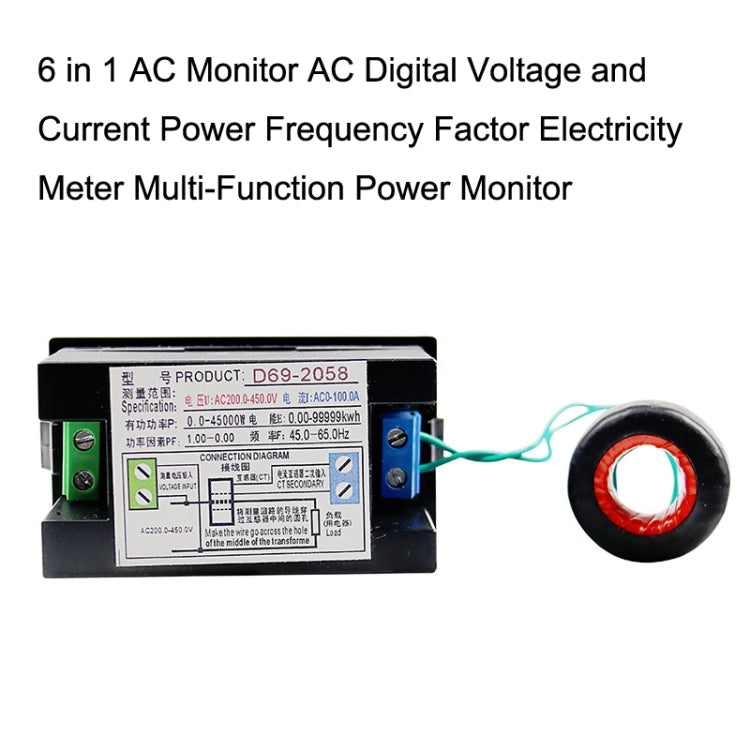

- Connection Instructions:
- Follow the wiring diagram provided
- Connect the secondary end of the current transformer to the blue terminal
- Pass the measurement loop wire through the current transformer
- Connect the voltage measurement lead to the green terminal
- Press and hold the reset button for 5 seconds to reset
