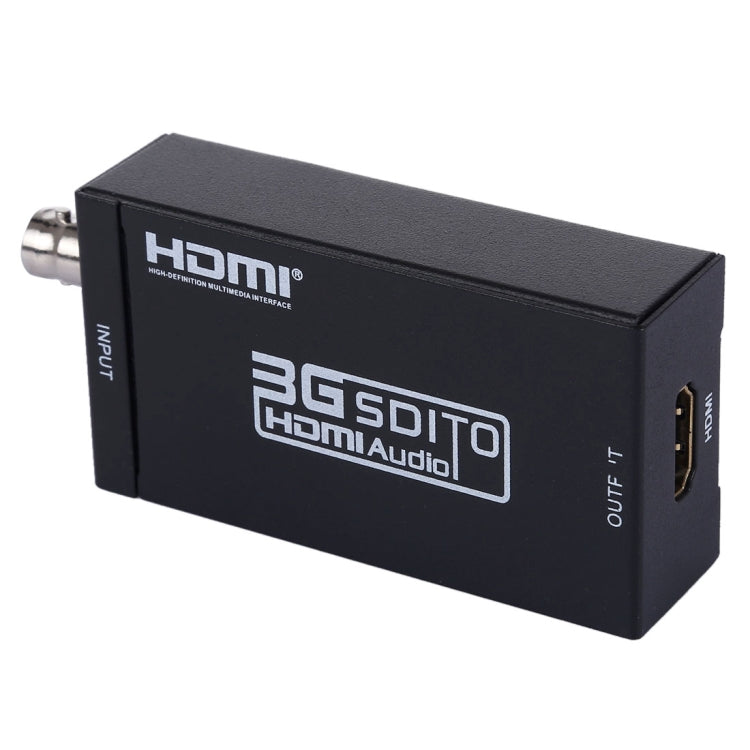

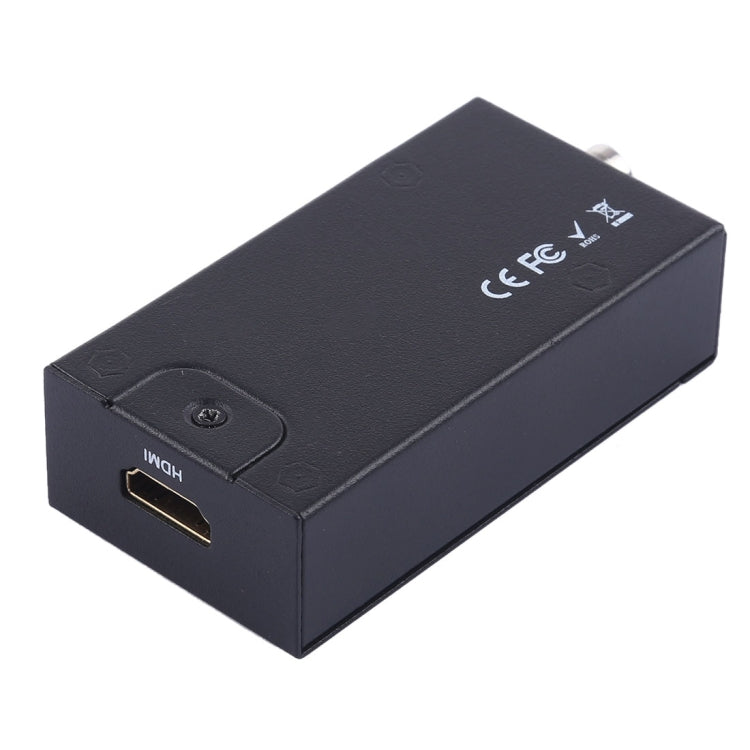

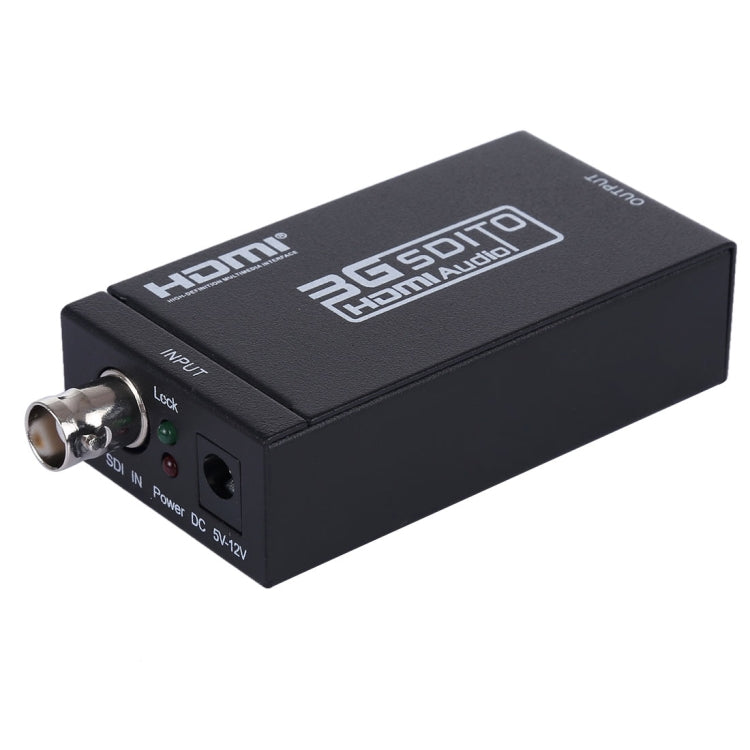

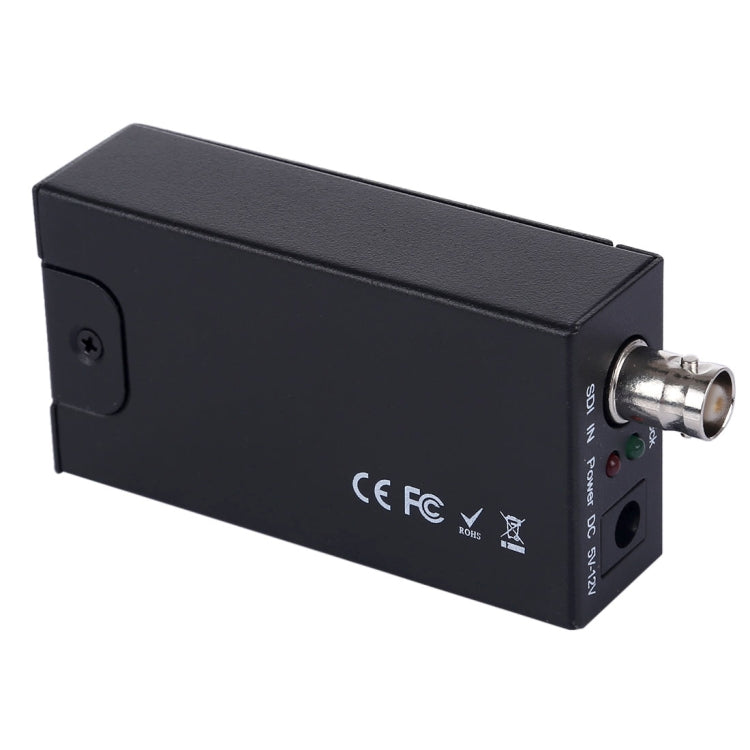

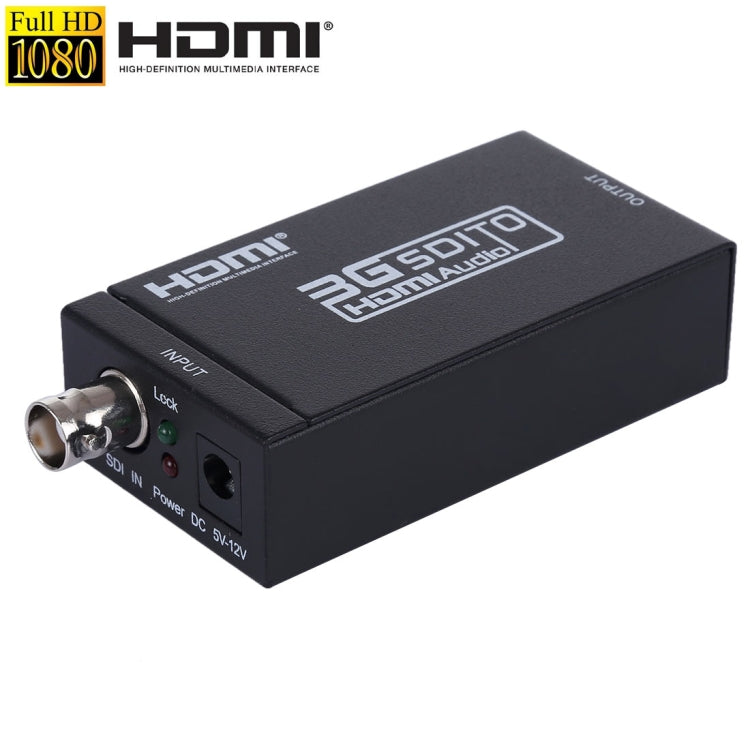

AY30 Mini 3G SDI to HDMI Converter

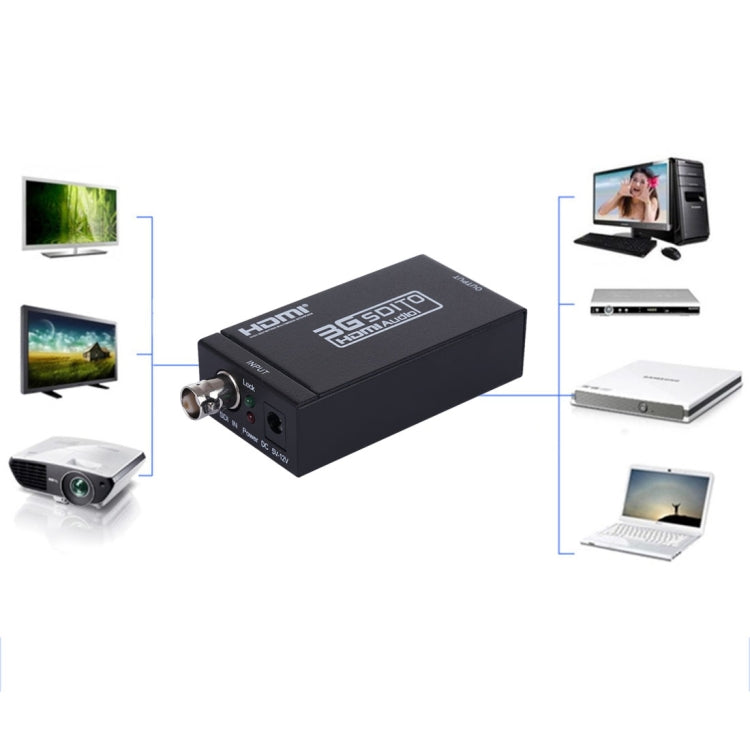

Mini SDI to HDMI converter allows SD-SDI, HD-SDI, and 3G-SDI signals to be displayed on HDMI displays. It is suitable for professionals needing to distribute and extend 3G SDI signals for display on HDMI devices.

• Input port: 1 x BNC (SDI / HD-SDI / 3G-SDI)
• Output port: 1 x HDMI
• SDI transmission rates: 2.970 Gbit/s, 1.485 Gbit/s, 270 Mbit/s
• Supported standards: SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C
• Loop output integrated audio de-embedder with equalization and retime, up to 8 channels, 48 KHz audio
• Input/output resolution: 480i, 576i, 720p @ 50/59.94/60, 1080i @ 50/59.94/60, 1080p @ 23.97/24/25/29.97/30/50/59.94/60
• Power supply: DC 5V - 12V
• ESD protection: ± 8kV (air gap discharge), ± 4kV (contact discharge)
• Dimensions: 80mm x 41mm x 22.5mm
• Weight: 102g
• Operating temperature: 0°C - 40°C / 32°F - 104°F
• Storage temperature: -20°C - 60°C / -4°F - 140°F
• Power consumption: up to 5W
