Adjustable Voltage Solar Charging Module Auto Power On Voltage Regulator Accessory

• Product type: Other Accessories
• Compatibility: Solar charging systems
• Material: Durable
• Key feature: Auto power on voltage regulation
• Color/Variant: N/A
• Intended use: Everyday use
• Category: Electronics Module

1. The current size can be set for limiting the output current, constant current drive, battery charging
2. Comes with output anti-backflow function, no need to add anti-backflow diode when charging battery
3. After undervoltage protection, as long as the input voltage can be restored to start without re-power off, can be restored
4. Enlarge the heat sink and copper, high power rectifier diode
5. Usage:- As a general lift module with overcurrent protection ability to use- As a battery charger- As a high-power LED constant current driver module
6. Note: this module in more than 3A, 35W use, please strengthen the heat dissipation
Parameters:
1. Input voltage: 4.8-30V
2. Output voltage: 0.5-30V
3. Output current: can work stably at 3A for a long time, and can reach 4A under enhanced heat dissipation
4. Output power: 35W with natural heat dissipation, 60W with enhanced heat dissipation
5. Conversion efficiency: 88 percent or so
6. Short circuit protection: yes
7. Operating frequency: 180KHz

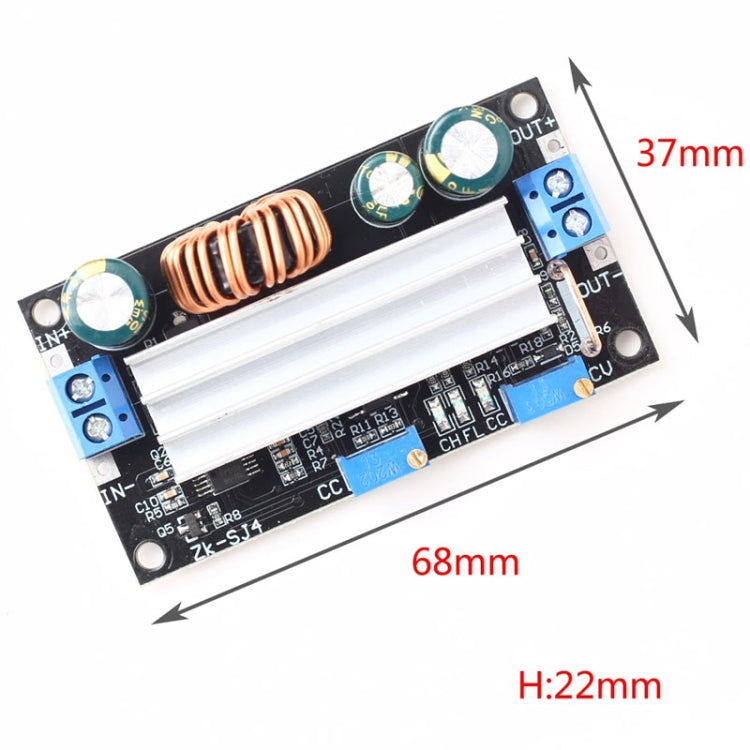

8. Size: 68 x 37 x 22mm, mounting hole diameter 3mm
9. Weight: 38.7g
